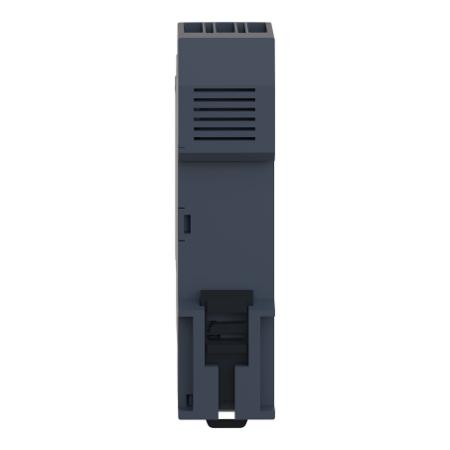

Schneider Electric Asymmetrical Single Timer Relay, Screw

Enrgtech Part No: ET13997722
|
Manufacturer Part No:
RE22R1MLMR
|
Manufacturer: Schneider Electric

RE22R1MLMR Schneider Electric Asymmetrical Single Timer Relay, Screw

Product Information

Maximum Voltage:

240V ac/dc

Width:

90mm

Supply Voltage:

24 → 240V ac/dc

Maximum Current:

Time Range:

0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s

Mode of Operation:

Asymmetrical

Number of Timer Functions:

Single

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Hours, Minutes, Seconds

Checking for live stock

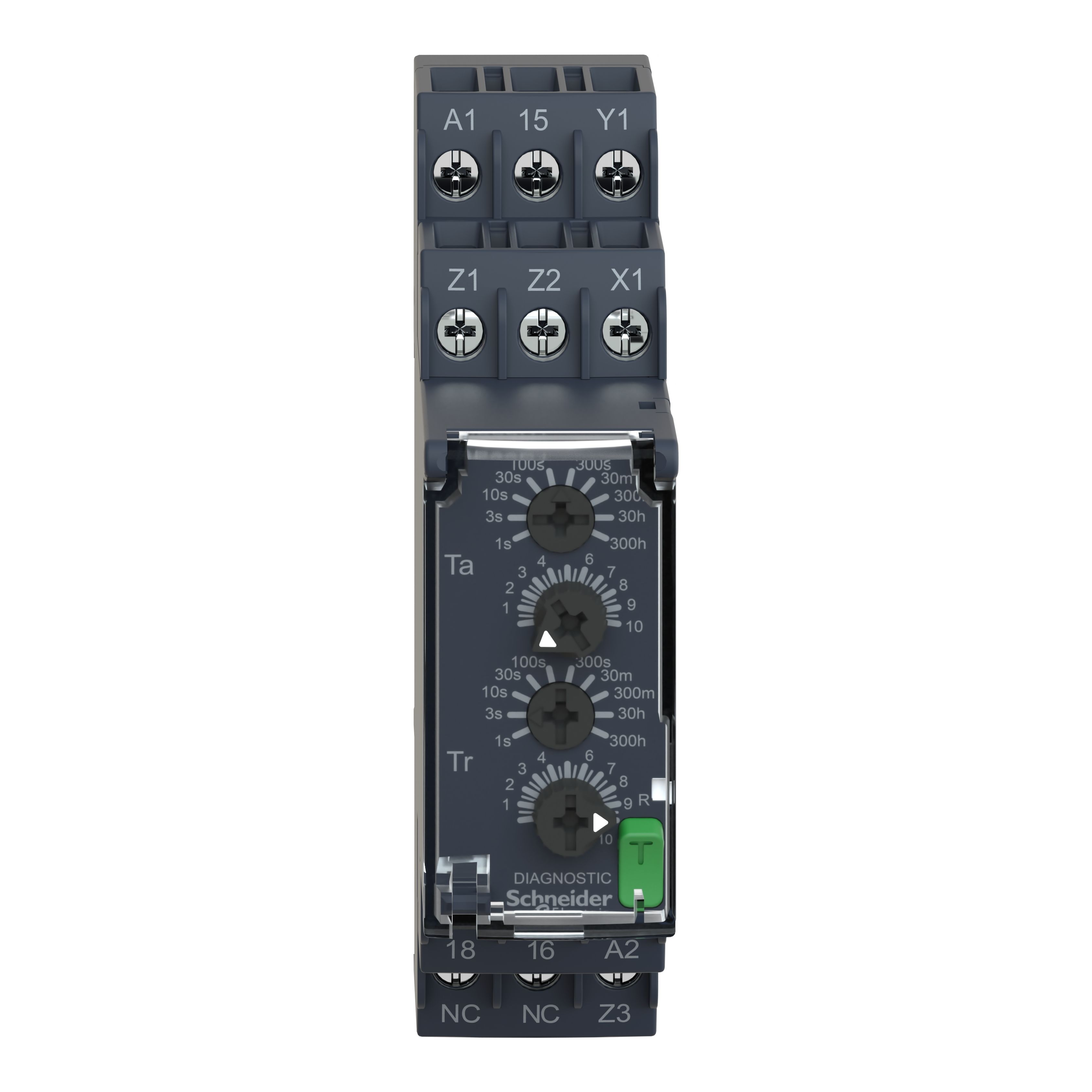

The Schneider Electric RE22R1MLMR is a versatile modular timer relay from the Harmony series, specifically engineered for asymmetrical flashing applications. Featuring a broad time-delay range from 0.05 seconds to 300 hours, this 22.5mm slim-profile device offers precise control over automated industrial sequences. With its multi-voltage compatibility (24-240V AC/DC), it provides a flexible solution for managing complex timing tasks in control panels, optimising space and improving system reliability.

What Makes Our Product Stand Out?

The ultra-slim 22.5mm design of the Schneider Electric RE22R1MLMR timer relay saves valuable rail space while offering a massive timing range for diverse automation needs.

Integrated diagnostic button for instant circuit testing.
Flexible supply voltage range for universal compatibility.

Core Performance Features & Key Uses

Technical Specifications

Function Type: Asymmetrical Flashing (Starting Pulse On or Off).
Supply Voltage: 24 to 240V AC/DC.
Time Delay Range: 0.05 seconds to 300 hours.
Output Configuration: 1 C/O (SPDT) contact.
Current Rating: 8A maximum switching current.

Suitable Environments

Commercial building lighting and alarm control systems.
Industrial automation and machine logic control panels.
Water treatment facilities and pumping station management.
HVAC motor controls and ventilation sequence timing.

Instruction Sheet - RE22R1MLMR(Technical Reference)

RE22R1MLMR Data Sheet(Technical Reference)

Catalogue - Harmony Timer Relays(Technical Reference)

RE22 Series Product Guides(Technical Reference)

Product Environmental Profile(Technical Reference)

RE22R1MLMR(Datasheets)
