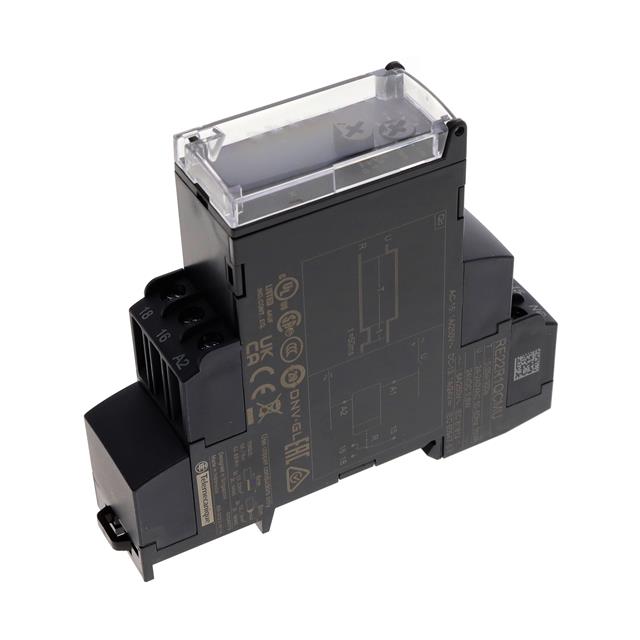

Schneider Electric Star Delta Single Timer Relay, Screw, 0.05 → 300 s, SPDT, 1 Contacts, SPCO

Enrgtech Part No: ET13863254
|
Manufacturer Part No:
RE22R1QCMU
|
Manufacturer: Schneider Electric

RE22R1QCMU Schneider Electric Star Delta Single Timer Relay, Screw, 0.05 → 300 s, SPDT, 1 Contacts, SPCO

Product Information

Maximum Voltage:

240V ac/dc

Width:

90mm

Supply Voltage:

24 → 240V ac/dc

Maximum Current:

Time Range:

0.05 → 300s

Mode of Operation:

Star Delta

Number of Timer Functions:

Single

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Seconds

Checking for live stock

The Schneider Electric RE22R1QCMU is a modular star-delta timing relay designed for use in motor control panels and automation systems. With a slim 22.5 mm width, the unit supports a selectable timing range from 0.05 s to 300 s and is rated for 24 V dc / 24-240 V ac 50/60Hz supply voltages. It features one change-over (SPDT) contact capable of switching up to 8 A and is DIN-rail mountable. A diagnostic button enables quick system verification and troubleshooting.

How It Benefits

Slim 22.5 mm width allows compact panel installation.
Star-delta timing function accelerates the transition from star to delta motor winding.
Wide time-delay range (0.05 s to 300 s) accommodates varied control tasks.
Single SPDT (1 C/O) contact simplifies interface with control circuits.
Screw-terminal connection format ensures secure wiring in different setups.
Diagnostic button and status LEDs support rapid commissioning and fault-finding.

Planned for Precision Control

This relay is engineered to support precise motor control sequences and automation logic. The unit suits rigorous industrial environments. The compact housing and DIN-rail format expedite retrofit installations, whereas the screw terminals ensure secure, reliable wiring.

Versatile Uses of the Schneider Electric Star Delta Single Timer Relay

Motor control panels requiring star-delta transition timing to reduce starting current.
Industrial automation where compact timing modules.
Control systems that demand momentary or transitional switching functions.
Machine-tool or conveyor systems.
Retrofit applications in electrical distribution panels.
