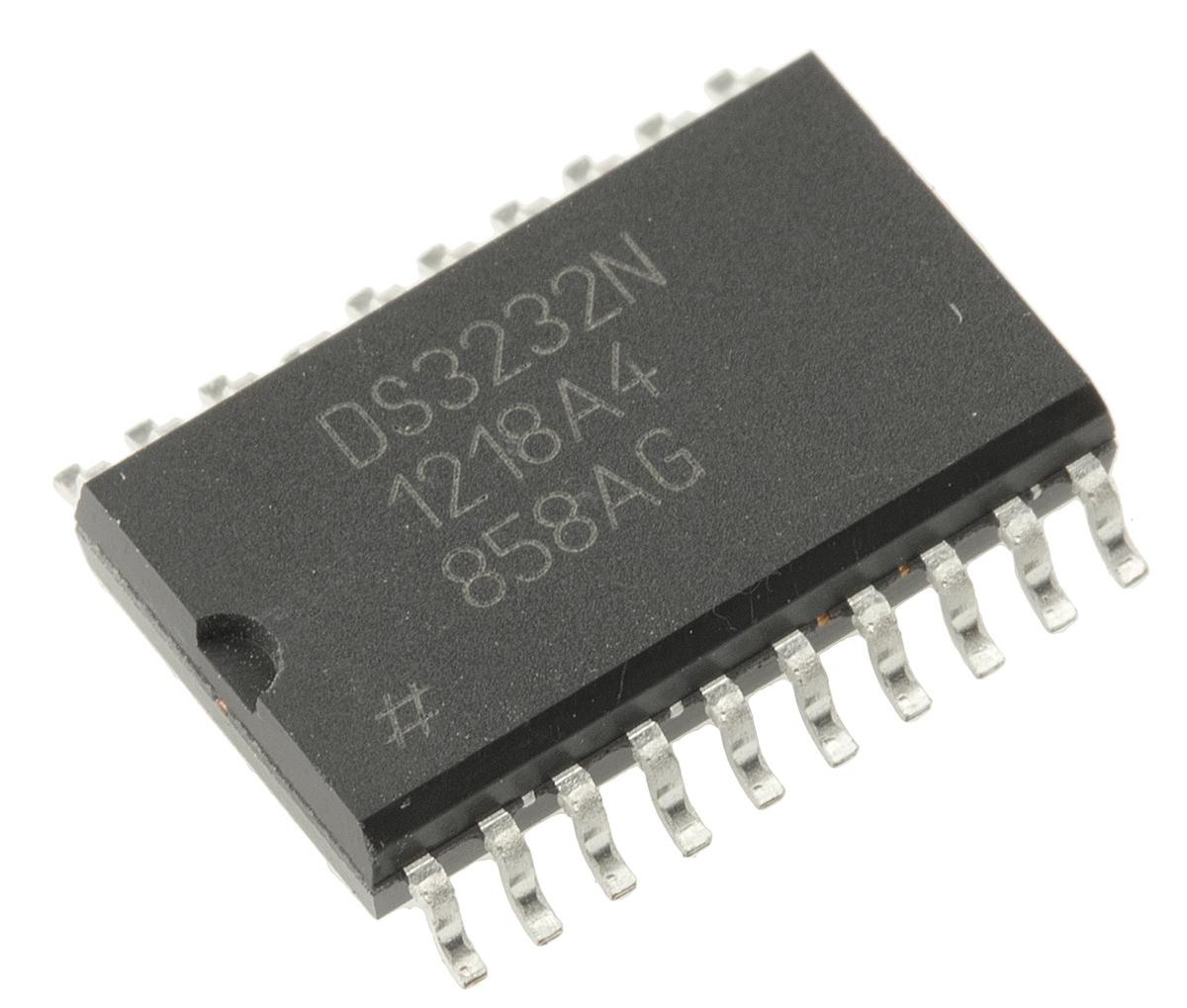

Maxim 32.768 kHz TCXO Oscillator, CMOS ±3.5ppm SOICDS3232SN#
Product Information
Dimensions:
13 x 7.6 x 2.35mm
Load Capacitance:
10pF
Oscillator Type:
TCXO
Height:
2.35mm
Frequency Stability:
±3.5ppm
Output Level:
CMOS
Package Type:
20 SO
Output Frequency:
32.768kHz
Minimum Operating Temperature:
-40°C
Maximum Supply Voltage:
5.5V
Maximum Operating Temperature:
85°C
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Timekeeping (Max):
120µA ~ 160µA @ 3.3V ~ 5.5V
Operating Temperature:
-40°C ~ 85°C
Memory Size:
236B
Package / Case:
20-SOIC (0.295", 7.50mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (12/24 hr)
Interface:
I²C, 2-Wire Serial
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Battery:
2.3V ~ 5.5V
standardLeadTime:
52 Weeks
Features:
Alarm, Leap Year, Square Wave Output, SRAM, TCXO/Crystal
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
20-SOIC
Voltage - Supply:
2.3V ~ 5.5V
Base Product Number:
DS3232
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DS3232SN# on website for other similar products.
We accept all major payment methods for all products including ET18613920. Please check your shopping cart at the time of order.
You can order Maxim Integrated brand products with DS3232SN# directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TCXO Oscillators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim 32.768 kHz TCXO Oscillator, CMOS ±3.5ppm SOICDS3232SN#. You can also check on our website or by contacting our customer support team for further order details on Maxim 32.768 kHz TCXO Oscillator, CMOS ±3.5ppm SOICDS3232SN#.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18613920 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18613920.
Yes. We ship DS3232SN# Internationally to many countries around the world.
This is Maxim 32.768 kHz TCXO Oscillator CMOS ±3.5ppm SOIC manufactured by Maxim Integrated. The manufacturer part number is DS3232SN#. The given dimensions of the product include 13 x 7.6 x 2.35mm. It features 10pf load capacitance. The product is a tcxo type of oscillator. In addition, the height is 2.35mm. It also carries ±3.5ppm of stable frequency value. Its output level is cmos . The package is a sort of 20 so. This product has an output frequency range of 32.768khz. Whereas, the minimum operating temperature of the product is -40°c. The product requires a maximum 5.5v supply voltage . It has a maximum operating temperature of 85°c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The maximum timekeeping current is 120µa ~ 160µa @ 3.3v ~ 5.5v. The product has -40°c ~ 85°c operating temperature range. It holds a typical memory size of 236b. Moreover, the product comes in 20-soic (0.295", 7.50mm width). It comes in clock/calendar configuration. In addition, it is reach unaffected. Date Format Info: yy-mm-dd-dd. Assigned with a time format of hh:mm:ss (12/24 hr) . A bespoke product is i²c, 2-wire serial interface. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The battery provides up to 2.3v ~ 5.5v supply voltage. It has a long 52 weeks standard lead time. The splendid features of the product include alarm, leap year, square wave output, sram, tcxo/crystal. The product is available in surface mount configuration. 20-soic is the supplier device package value. It has optimum voltage supply of 2.3v ~ 5.5v. Moreover, it corresponds to ds3232, a base product number of the product. The product is designated with the ear99 code number.
