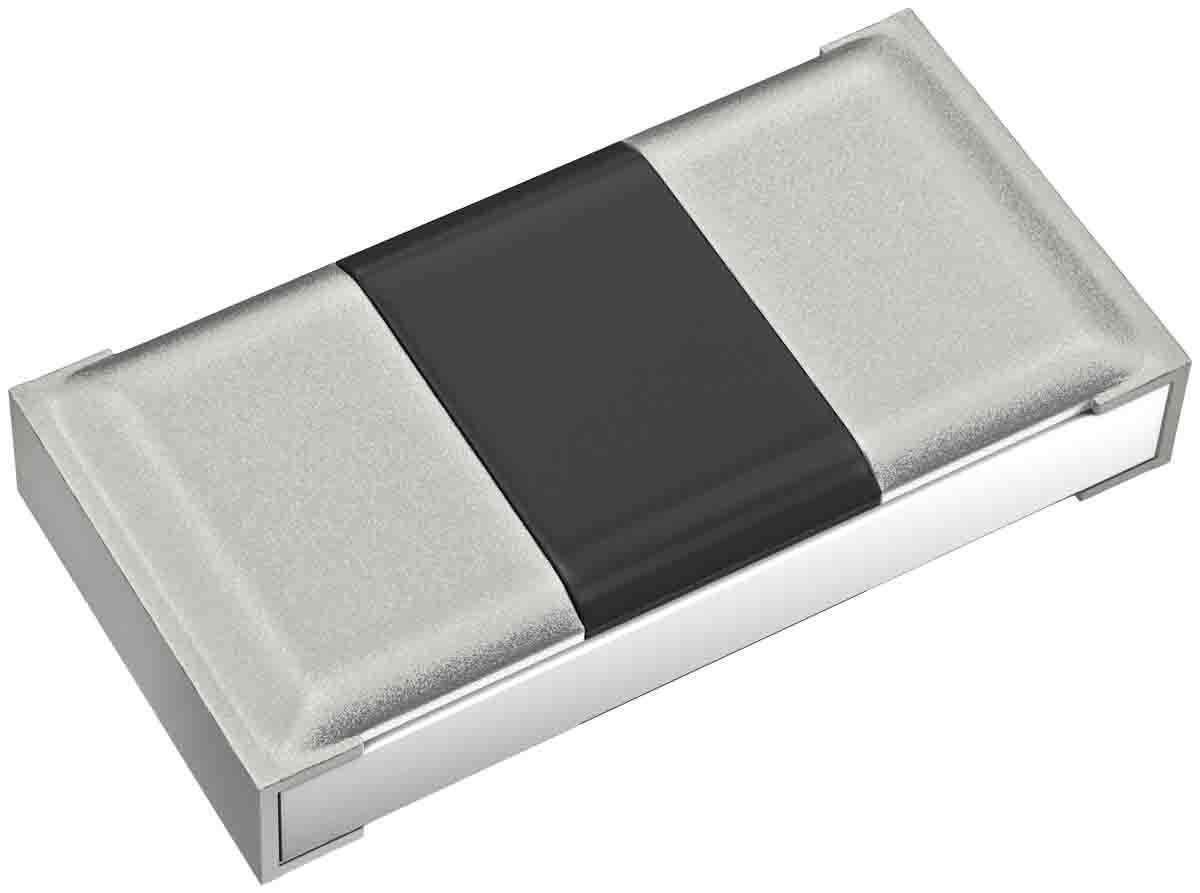

Panasonic ERJ Series Thick Film Surface Mount Fixed Resistor 1206 Case 7.5MΩ ±5% 0.25W -400 → +150ppm/°C

Enrgtech Part No: ET16752100
|
Manufacturer Part No:
ERJ8GEYJ755V
|
Manufacturer: Panasonic

ERJ8GEYJ755V Panasonic ERJ Series Thick Film Surface Mount Fixed Resistor 1206 Case 7.5MΩ ±5% 0.25W -400 → +150ppm/°C

Product Information

Product Type:

Surface Mount Resistor

Maximum Operating Temperature:

155°C

Series:

ERJ

Termination Style:

Surface Mount

Resistance:

7.5mΩ

Temperature Coefficient:

-400 to 150 ppm/°C

Height:

0.6mm

Packaging:

Punched Carrier Tape

Width:

1.6 mm

Length:

3.2mm

Standards/Approvals:

IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS

Voltage:

200 V

Checking for live stock

This is ERJ Series Thick Film Surface Mount Fixed Resistor 1206 Case 7.5MΩ ±5% 0.25W -400 → +150ppm/°C manufactured by Panasonic. The manufacturer part number is ERJ8GEYJ755V. surface mount resistor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 155°c. The product erj, is a highly preferred choice for users. Moreover, it has surface mount terminal style. It carries 7.5mω resistance. It exhibits an excellent temperature coefficient of -400 to 150 ppm/°c. In addition, the height is 0.6mm. In addition, punched carrier tape is the available packaging type of the product. Furthermore, the product is 1.6 mm wide. Its accurate length is 3.2mm. It carries a 200 v of voltage. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.25w of power rating. Concerning its package and casing, it is 1206. It features ±5 % of tolerance value. The product complies with automotive standard - aec-q200. This product use thick film technology.

Panasonic Surface Mount Resistors Technical Guide(Technical Reference)

Panasonic Surface Mount Resistors Recommended Soldering Conditions(Technical Reference)

Panasonic Surface Mount Resistors Packaging Method Information Sheet(Technical Reference)

Panasonic ERJ8G Thick Film Chip Resistors Datasheet(Technical Reference)

Panasonic Surface Mount Resistors Land Pattern(Technical Reference)
