WE-PD Performance SMT Shielded Power Ind

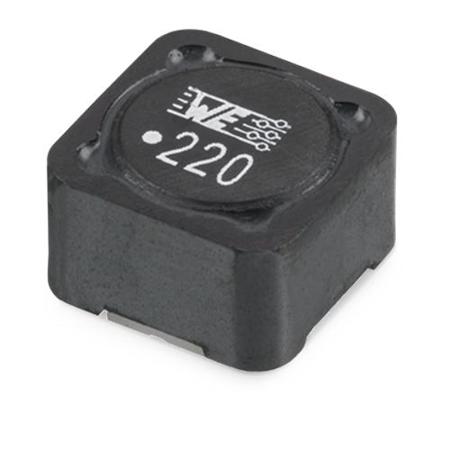

7447783221 WE-PD Performance SMT Shielded Power Ind
7447783221 WE-PD Performance SMT Shielded Power Ind
Wurth Elektronik

Product Information

Inductor Construction:
Surface Mount
Sub Type:
High Current Inductor
Termination Style:
SMT
Inductance Tolerance:
±20 %
Maximum Self Resonant Frequency:
5MHz
Automotive Standard:
AEC-Q200 Grade 1
Shielding:
Shielded
Core Material:
Ferrite
Inductance:
220 μH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
125°C
Maximum DC Current:
0.54A
Length:
7.3mm
Standards/Approvals:
Rohs
Pin Count:
2
Package/Case:
7332
Maximum DC Resistance:
1040mΩ
Series:
744
Depth:
7.3mm
Height:
3.5mm
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is WE-PD Performance SMT Shielded Power Ind manufactured by Wurth Elektronik. The manufacturer part number is 7447783221. The inductor is designed as surface mount inductor. Its sub type is high current inductor . Moreover, it has smt terminal style. It has a standard ±20 % inductance tolerance . It provides 5mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200 grade 1. Furthermore, the product is shielded with shielded. The core is manufactured from highly durable and reliable ferrite materials. The product has a 220 μh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. While it carries 0.54a of maximum DC current. Its accurate length is 7.3mm. It contains 2 pins. Concerning its package and casing, it is 7332. It allows up to 1040mω maximum DC resistance. The product 744, is a highly preferred choice for users. The product comes in 7.3mm depth. In addition, the height is 3.5mm. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet - 7447783221(Technical Reference)
