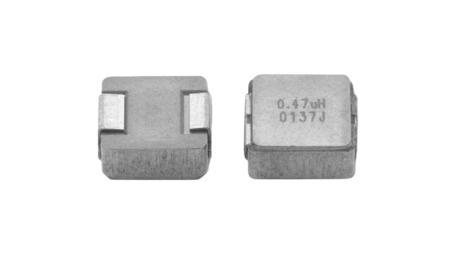

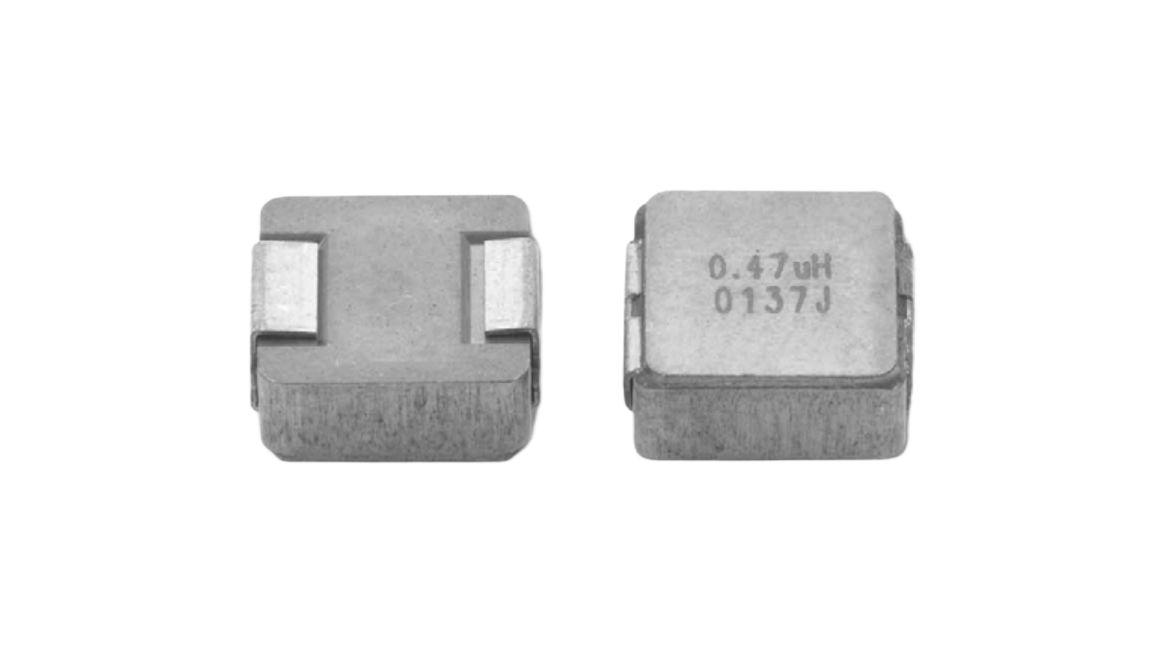

Vishay, IHLP, EK Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20% Shielded 7A Idc

IHLP2525CZEK3R3M11 Vishay, IHLP, EK Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20% Shielded 7A Idc
IHLP2525CZEK3R3M11 Vishay, IHLP, EK Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20% Shielded 7A Idc
Vishay

Product Information

Inductor Construction:
Shielded
Termination Style:
EK
Inductance Tolerance:
±20 %
Maximum Self Resonant Frequency:
30MHz
Automotive Standard:
No
Shielding:
Yes
Core Material:
Metal Composite
Inductance:
3.3 μH
Product Type:
Wirewound Surface Mount Inductor
Maximum Operating Temperature:
125°C
Maximum DC Resistance:
30mΩ
Maximum DC Current:
7A
Length:
0.27in
Standards/Approvals:
RoHS
Pin Count:
2
Package/Case:
EK
Diameter:
0.12 in
Series:
IHLP
Depth:
0.12in
Height:
3mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is IHLP EK Shielded Wire-wound SMD Inductor with a Metal Composite Core 3.3 μH ±20% Shielded 7A Idc manufactured by Vishay. The manufacturer part number is IHLP2525CZEK3R3M11. The inductor is designed as shielded inductor. Moreover, it has ek terminal style. It has a standard ±20 % inductance tolerance . It provides 30mhz of maximum self-resonant frequency. The product complies with automotive standard - no. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable metal composite materials. The product has a 3.3 μh inductance value. wirewound surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It allows up to 30mω maximum DC resistance. While it carries 7a of maximum DC current. Its accurate length is 0.27in. It contains 2 pins. Concerning its package and casing, it is ek. Its diameter is 0.12 in. The product ihlp, is a highly preferred choice for users. The product comes in 0.12in depth. In addition, the height is 3mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - IHLP2525CZEK3R3M11(Technical Reference)
