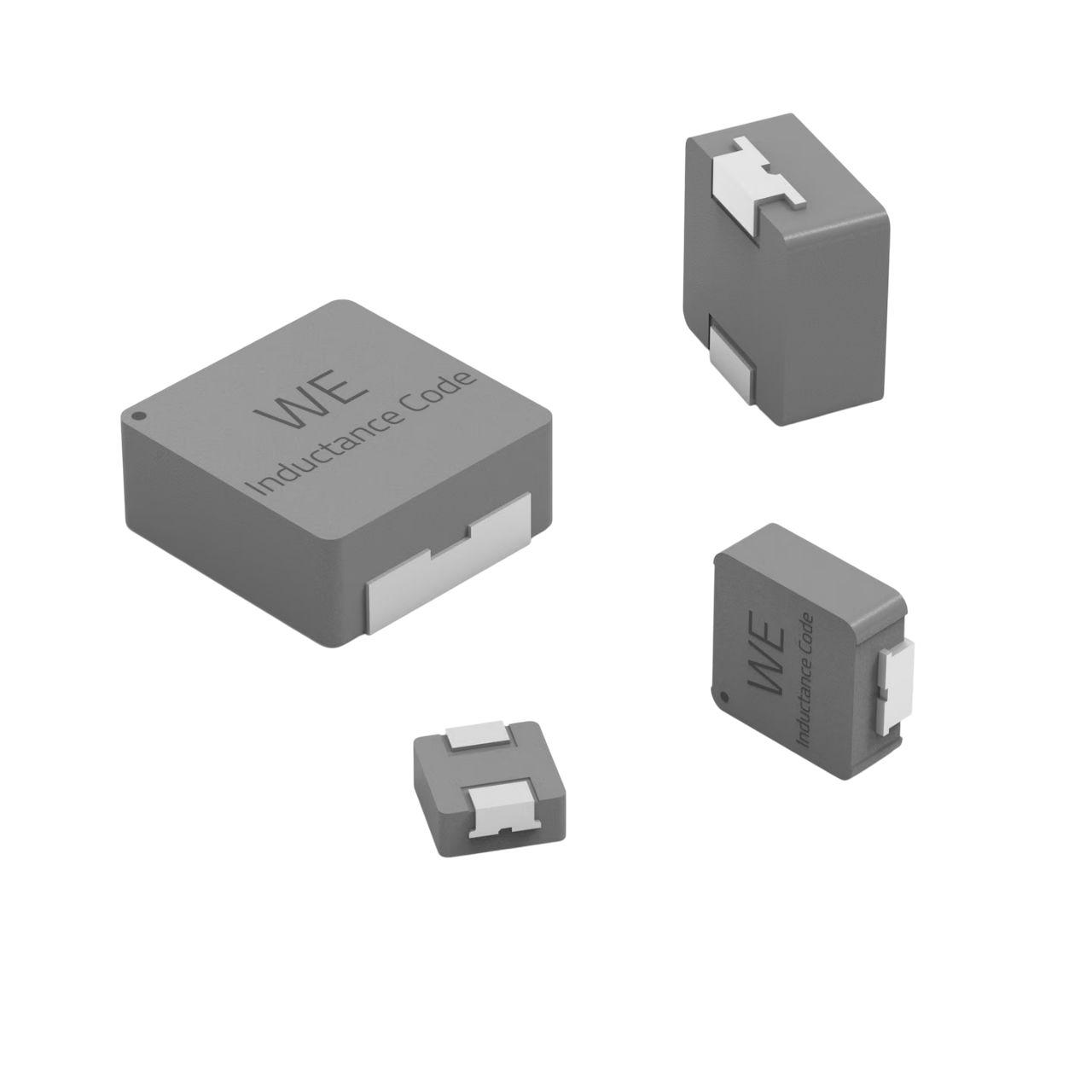

Wurth, 784373, 1365 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 22 μH ±20% Shielded 7.1A Idc

784373865220 Wurth, 784373, 1365 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 22 μH ±20% Shielded 7.1A Idc
784373865220 Wurth, 784373, 1365 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 22 μH ±20% Shielded 7.1A Idc
Wurth Elektronik

Product Information

Inductor Construction:
Shielded
Sub Type:
High Current Inductor
Inductance Tolerance:
±20 %
Maximum Self Resonant Frequency:
6MHz
Automotive Standard:
AEC-Q200
Shielding:
Yes
Core Material:
Magnetic Iron Alloy
Inductance:
22 μH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
155°C
Moulded:
No
Maximum DC Resistance:
39.5mΩ
Maximum DC Current:
7.1A
Length:
13.45mm
Standards/Approvals:
Halogen-Free (JEDEC JS709B,IEC 61249-2-21), RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006)
Package/Case:
1365
Diameter:
6.3 mm
Series:
784373
Depth:
6.3mm
Height:
6.3mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Wurth 784373 1365 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 22 μH ±20% Shielded 7.1A Idc manufactured by Wurth Elektronik. The manufacturer part number is 784373865220. The inductor is designed as shielded inductor. Its sub type is high current inductor . It has a standard ±20 % inductance tolerance . It provides 6mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 22 μh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 155°c. In addition, it is moulded no . It allows up to 39.5mω maximum DC resistance. While it carries 7.1a of maximum DC current. Its accurate length is 13.45mm. Concerning its package and casing, it is 1365. Its diameter is 6.3 mm. The product 784373, is a highly preferred choice for users. The product comes in 6.3mm depth. In addition, the height is 6.3mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - 784373865220(Technical Reference)
