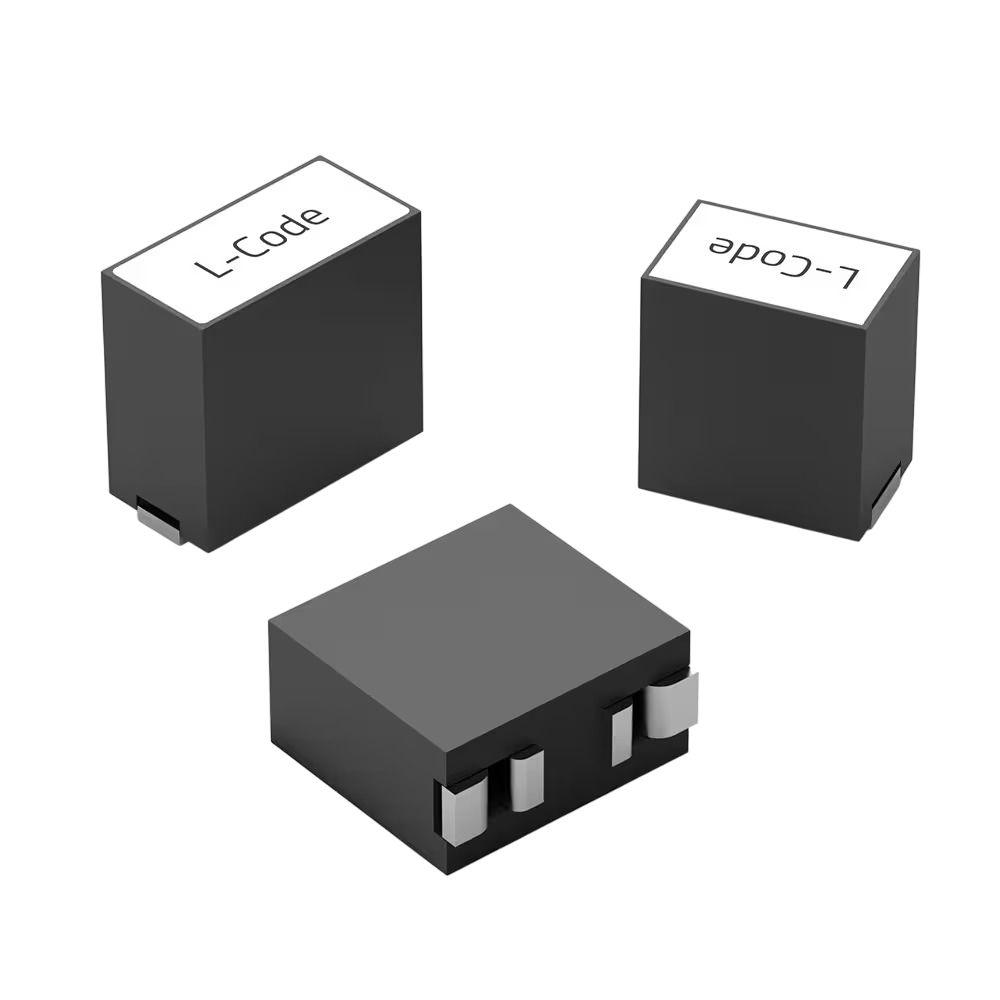

Wurth, WE-HCMD, 1111 (2828M) Shielded Wire-wound SMD Inductor with a MnZn Core, 120 nH ±15% Shielded 78A Idc

7443001111120 Wurth, WE-HCMD, 1111 (2828M) Shielded Wire-wound SMD Inductor with a MnZn Core, 120 nH ±15% Shielded 78A Idc
7443001111120 Wurth, WE-HCMD, 1111 (2828M) Shielded Wire-wound SMD Inductor with a MnZn Core, 120 nH ±15% Shielded 78A Idc
Wurth Elektronik

Product Information

Inductor Construction:
Shielded
Sub Type:
High Current Flat Wire Inductor
Inductance Tolerance:
±15 %
Automotive Standard:
No
Shielding:
Yes
Core Material:
Manganese Zinc Ferrite
Inductance:
120 nH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
125°C
Moulded:
No
Maximum DC Resistance:
0.37mΩ
Maximum DC Current:
78A
Length:
11.7mm
Standards/Approvals:
863, RoHS 2011, Halogen Free JEDEC JS709B, REACH EC1907, EU&2015, IEC 61249-2-21, 2006
Package/Case:
1111
Diameter:
5.7 mm
Series:
WE-HCMD
Depth:
5.7mm
Height:
5.7mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Wurth WE-HCMD 1111 (2828M) Shielded Wire-wound SMD Inductor with a MnZn Core 120 nH ±15% Shielded 78A Idc manufactured by Wurth Elektronik. The manufacturer part number is 7443001111120. The inductor is designed as shielded inductor. Its sub type is high current flat wire inductor . It has a standard ±15 % inductance tolerance . The product complies with automotive standard - no. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable manganese zinc ferrite materials. The product has a 120 nh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. In addition, it is moulded no . It allows up to 0.37mω maximum DC resistance. While it carries 78a of maximum DC current. Its accurate length is 11.7mm. Concerning its package and casing, it is 1111. Its diameter is 5.7 mm. The product we-hcmd, is a highly preferred choice for users. The product comes in 5.7mm depth. In addition, the height is 5.7mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet - 7443001111120(Technical Reference)
