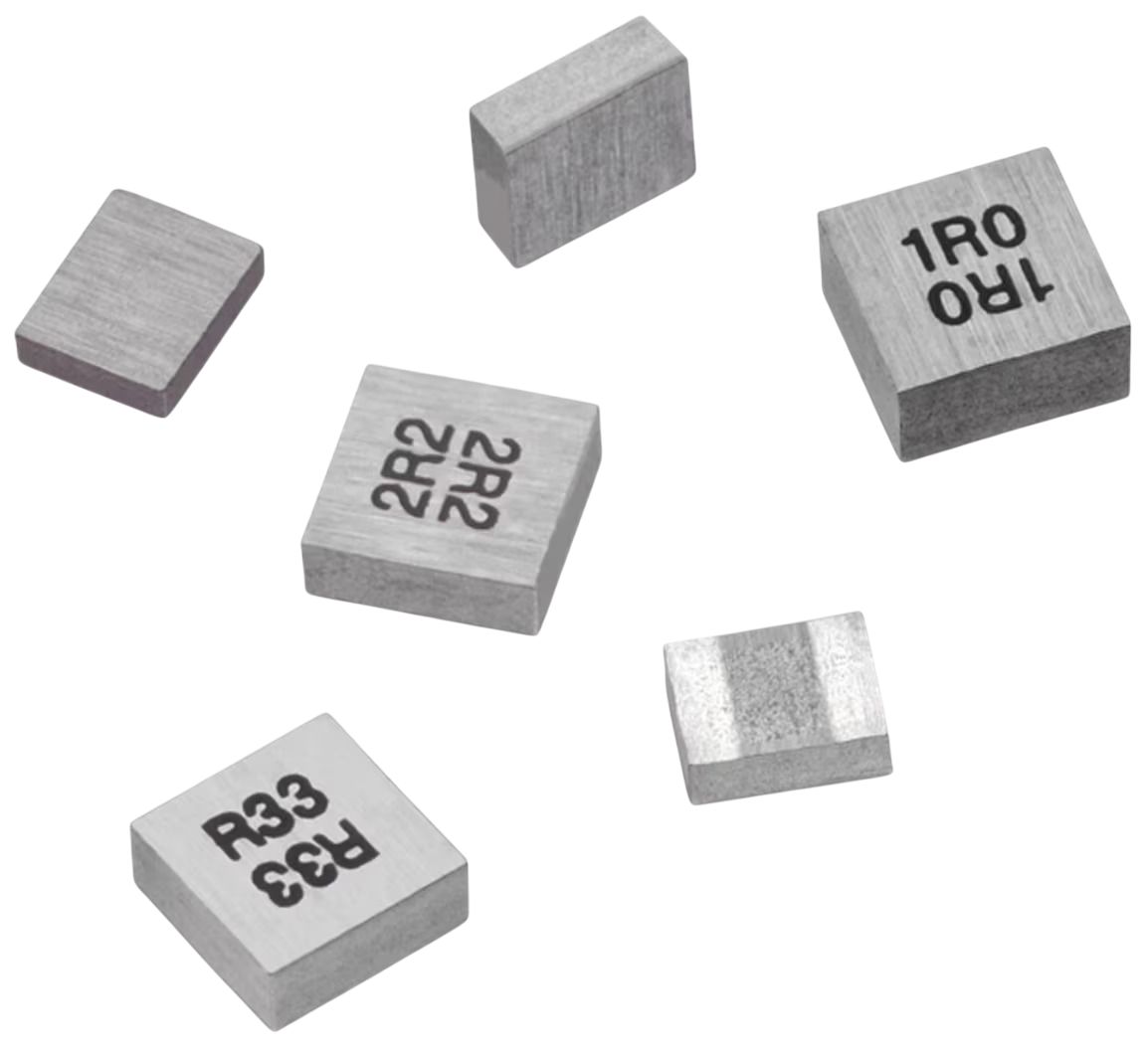

Wurth, 784383, 2010 (5025M) Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20% Shielded

78438343022 Wurth, 784383, 2010 (5025M) Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20% Shielded
78438343022 Wurth, 784383, 2010 (5025M) Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20% Shielded
Wurth Elektronik

Product Information

Inductor Construction:
Shielded
Sub Type:
SMT Power Inductor
Inductance Tolerance:
±20 %
Maximum Self Resonant Frequency:
70MHz
Automotive Standard:
AEC-Q200
Shielding:
Yes
Core Material:
Magnetic Iron Alloy
Inductance:
2.2 μH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
125°C
Moulded:
No
Maximum DC Resistance:
270mΩ
Maximum DC Current:
1.65A
Length:
2mm
Standards/Approvals:
REACH, IEC 62024-2-2020, Halogen Free, JEDEC JS709B, IEC 61249-2-21, RoHS
Package/Case:
2010
Diameter:
1 mm
Series:
784383
Depth:
1mm
Height:
1mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Wurth 784383 2010 (5025M) Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 2.2 μH ±20% Shielded manufactured by Wurth Elektronik. The manufacturer part number is 78438343022. The inductor is designed as shielded inductor. Its sub type is smt power inductor . It has a standard ±20 % inductance tolerance . It provides 70mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 2.2 μh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. In addition, it is moulded no . It allows up to 270mω maximum DC resistance. While it carries 1.65a of maximum DC current. Its accurate length is 2mm. Concerning its package and casing, it is 2010. Its diameter is 1 mm. The product 784383, is a highly preferred choice for users. The product comes in 1mm depth. In addition, the height is 1mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet - 78438343022(Technical Reference)
