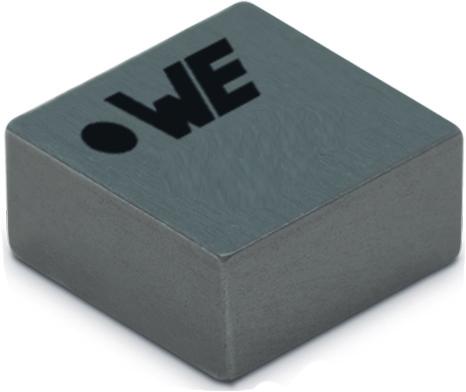

Wurth, MAPI, 3020HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 2.2 μH ±30% 6.4A Idc

74438336022HT Wurth, MAPI, 3020HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 2.2 μH ±30% 6.4A Idc
74438336022HT Wurth, MAPI, 3020HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 2.2 μH ±30% 6.4A Idc
Wurth Elektronik

Product Information

Inductor Construction:
Shielded
Sub Type:
SMT Power Inductor
Termination Style:
3020HT
Inductance Tolerance:
±30 %
Maximum Self Resonant Frequency:
47MHz
Automotive Standard:
AEC-Q200
Shielding:
Yes
Core Material:
Polystyrene
Inductance:
2.2 μH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
150°C
Moulded:
No
Maximum DC Resistance:
65.5mΩ
Maximum DC Current:
6.4A
Length:
3mm
Standards/Approvals:
IEC 61249-2-21, 2006, Halogen Free JEDEC JS709B, EU&2015, REACH EC1907, 863, RoHS 2011
Package/Case:
3020HT
Diameter:
2 mm
Series:
MAPI
Depth:
2mm
Height:
2mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Wurth MAPI 3020HT Shielded Wire-wound SMD Inductor with a Polystyrene Core 2.2 μH ±30% 6.4A Idc manufactured by Wurth Elektronik. The manufacturer part number is 74438336022HT. The inductor is designed as shielded inductor. Its sub type is smt power inductor . Moreover, it has 3020ht terminal style. It has a standard ±30 % inductance tolerance . It provides 47mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable polystyrene materials. The product has a 2.2 μh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. In addition, it is moulded no . It allows up to 65.5mω maximum DC resistance. While it carries 6.4a of maximum DC current. Its accurate length is 3mm. Concerning its package and casing, it is 3020ht. Its diameter is 2 mm. The product mapi, is a highly preferred choice for users. The product comes in 2mm depth. In addition, the height is 2mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - 74438336022HT(Technical Reference)
