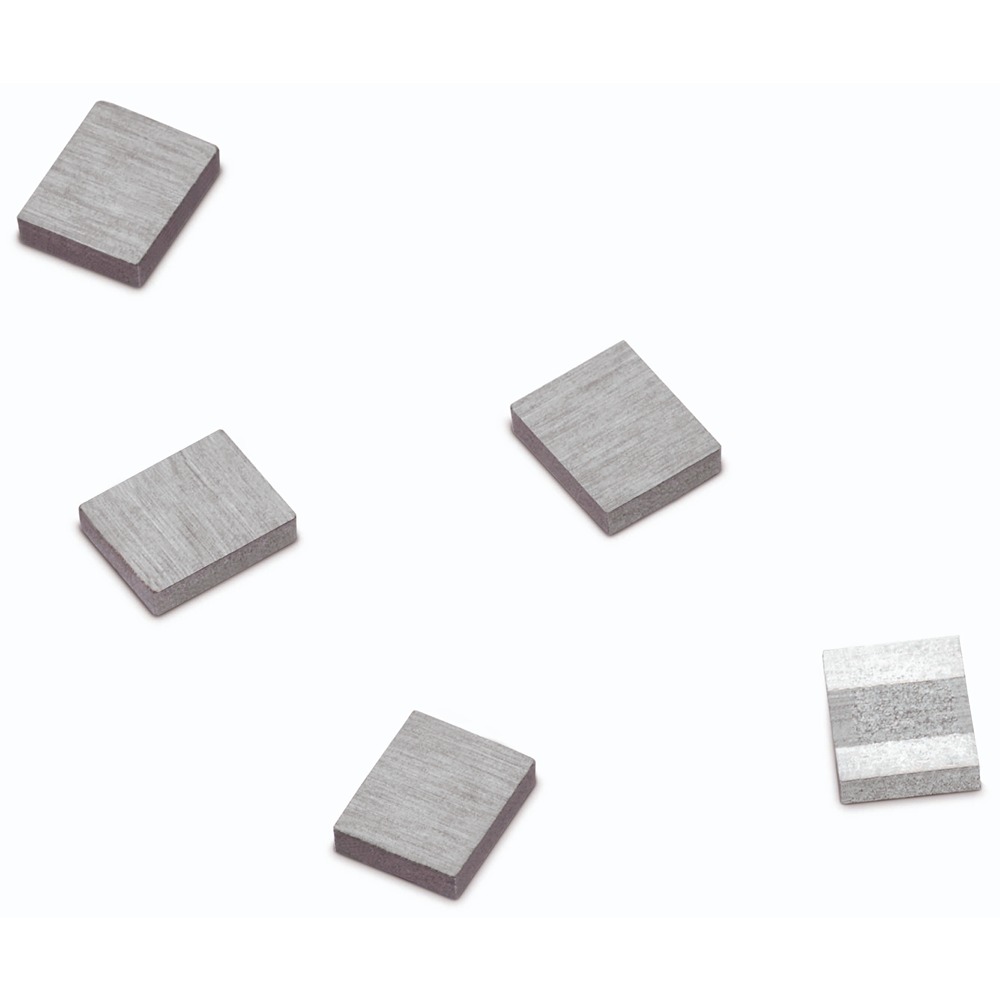

Wurth, MAPI, 2512HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 560 nH ±30% 4.7A Idc

744383240056HT Wurth, MAPI, 2512HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 560 nH ±30% 4.7A Idc
744383240056HT Wurth, MAPI, 2512HT Shielded Wire-wound SMD Inductor with a Polystyrene Core, 560 nH ±30% 4.7A Idc
Wurth Elektronik

Product Information

Inductor Construction:
Shielded
Sub Type:
SMT Power Inductor
Termination Style:
2512HT
Inductance Tolerance:
±30 %
Maximum Self Resonant Frequency:
102MHz
Automotive Standard:
AEC-Q200
Shielding:
Yes
Core Material:
Polystyrene
Inductance:
560 nH
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
150°C
Moulded:
No
Maximum DC Resistance:
44.1mΩ
Maximum DC Current:
4.7A
Length:
2.5mm
Standards/Approvals:
863, EU&2015, 2006, Halogen Free JEDEC JS709B, Halogen Free IEC 61249-2-21, RoHS 2011, REACH or declared EC1907
Package/Case:
2512HT
Diameter:
1.2 mm
Series:
MAPI
Depth:
1.2mm
Height:
1.2mm
Packaging:
Tape & Reel
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Wurth MAPI 2512HT Shielded Wire-wound SMD Inductor with a Polystyrene Core 560 nH ±30% 4.7A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744383240056HT. The inductor is designed as shielded inductor. Its sub type is smt power inductor . Moreover, it has 2512ht terminal style. It has a standard ±30 % inductance tolerance . It provides 102mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable polystyrene materials. The product has a 560 nh inductance value. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. In addition, it is moulded no . It allows up to 44.1mω maximum DC resistance. While it carries 4.7a of maximum DC current. Its accurate length is 2.5mm. Concerning its package and casing, it is 2512ht. Its diameter is 1.2 mm. The product mapi, is a highly preferred choice for users. The product comes in 1.2mm depth. In addition, the height is 1.2mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - 744383240056HT(Technical Reference)
