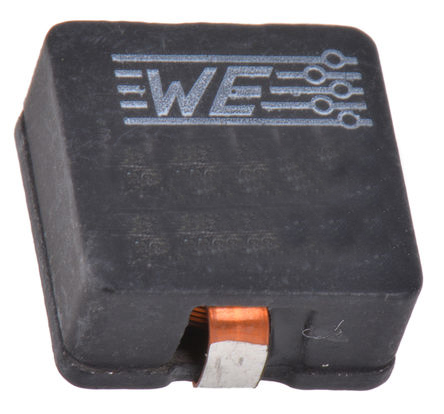

Wurth WE-HCI Series Type 1890 Shielded Wire-wound SMD Inductor MnZn 22 μH ±20% Flat Wire Winding 11A Idc

74435572200 Wurth WE-HCI Series Type 1890 Shielded Wire-wound SMD Inductor MnZn 22 μH ±20% Flat Wire Winding 11A Idc
74435572200
Wurth Elektronik

Product Information

Maximum DC Resistance:
14.6mΩ
Inductor Construction:
Flat Wire Winding
Dimensions:
18.3 x 18.2 x 8.9mm
Shielded:
Yes
Series:
WE-HCI
Minimum Operating Temperature:
-40°C
Length:
18.3mm
Height:
8.9mm
Maximum DC Current:
11A
Depth:
18.2mm
Core Material:
MnZn
Inductance:
22 μH
Maximum Self Resonant Frequency:
10.5MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Automotive Standard:
AEC-Q200
Package/Case:
1890
RoHs Compliant
Checking for live stock

This is Wurth WE-HCI Series Type 1890 Shielded Wire-wound SMD Inductor MnZn 22 μH ±20% Flat Wire Winding 11A Idc manufactured by Wurth Elektronik. The manufacturer part number is 74435572200. It allows up to 14.6mω maximum DC resistance. The inductor is designed as flat wire winding inductor. The given dimensions of the product include 18.3 x 18.2 x 8.9mm. Shielding Options yes. The product we-hci, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 18.3mm. In addition, the height is 8.9mm. While it carries 11a of maximum DC current. The product comes in 18.2mm depth. The core is manufactured from highly durable and reliable mnzn materials. The product has a 22 μh inductance value. It provides 10.5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 1890.

pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
pdf icon
Wurth Elektronik 74435572200 WE-HCI Inductor Datasheet(Technical Reference)
