Name: 744771122, Wurth Elektronik
Brand: Wurth Elektronik
SKU: ET14068416
Price: 1.54 GBP
Availability: InStock

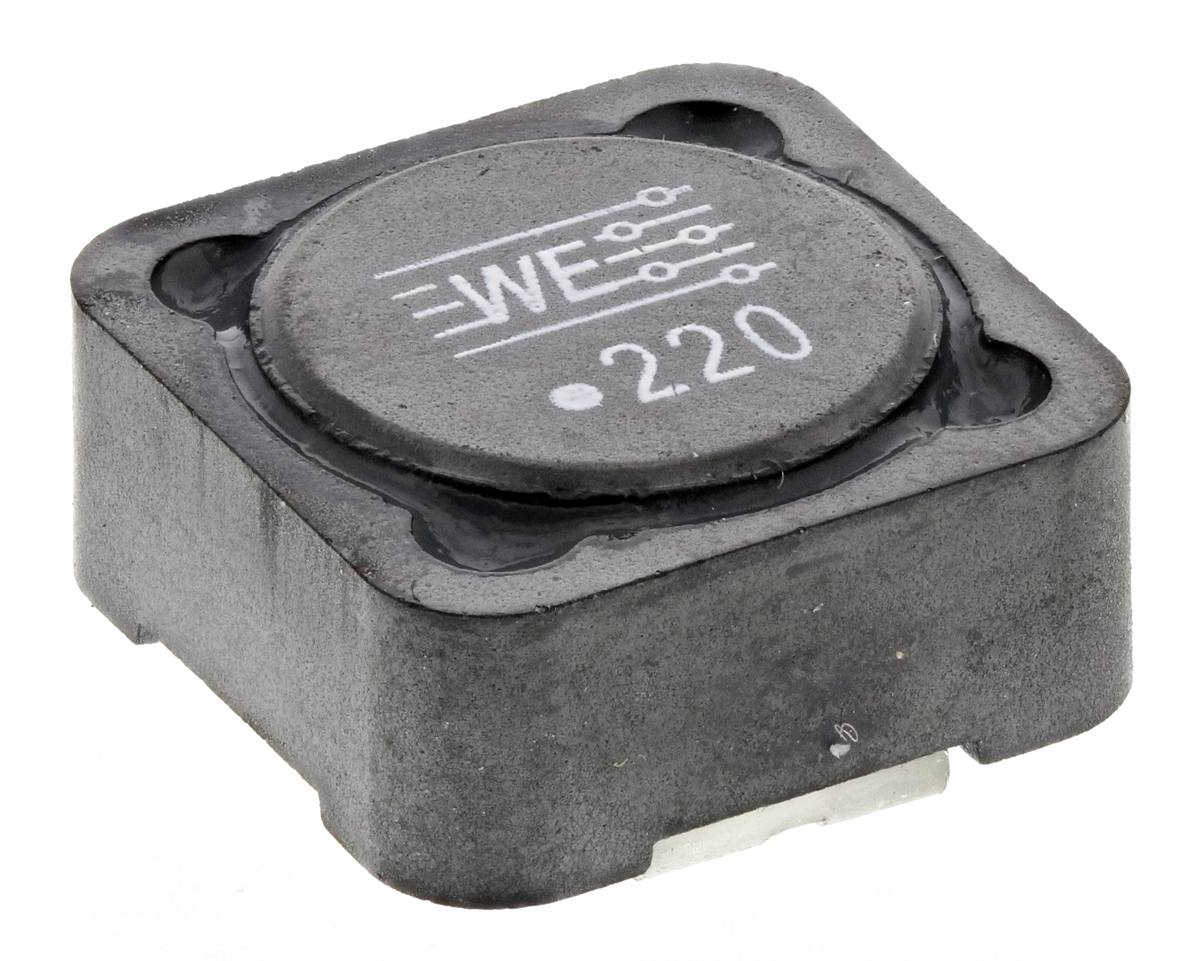

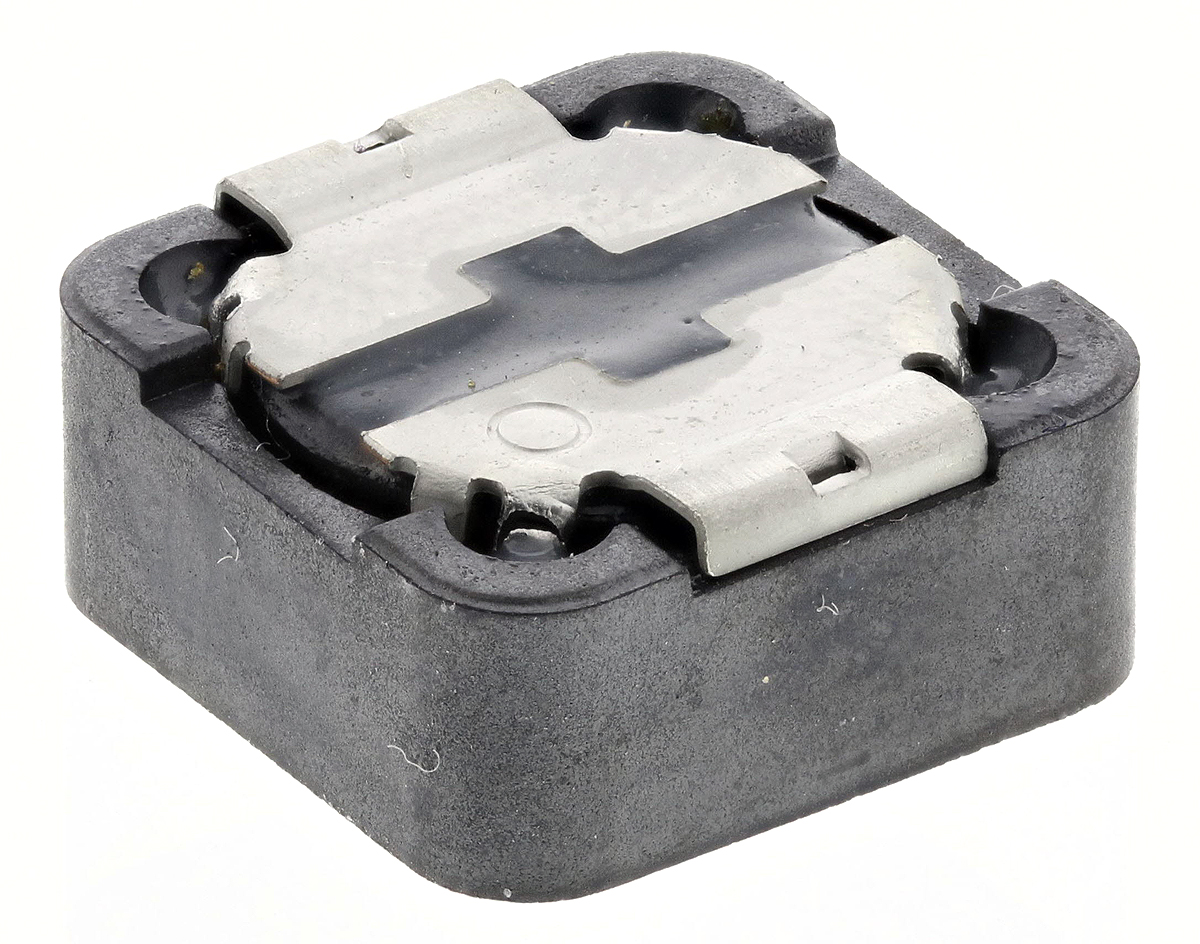

744771122 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% 3.37A Idc

(0)

Product Information

Maximum DC Resistance:

36mΩ

Shielding:

Yes

Inductance:

22 μH

Maximum DC Current:

3.37A

Series:

WE-PD

Minimum Operating Temperature:

-40°C

Termination Style:

Soldering Wire to Plating

Length:

12mm

Height:

6mm

Packaging:

Tape & Reel

Depth:

12mm

Standards/Approvals:

RoHS

Checking for live stock

This is Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core 22 μH ±20% 3.37A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744771122. It allows up to 36mω maximum DC resistance. Furthermore, the product is shielded with yes. The product has a 22 μh inductance value. While it carries 3.37a of maximum DC current. The product we-pd, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Moreover, it has soldering wire to plating terminal style. Its accurate length is 12mm. In addition, the height is 6mm. In addition, tape & reel is the available packaging type of the product. The product comes in 12mm depth. The core is manufactured from highly durable and reliable ferrite materials. It provides 13mhz of maximum self-resonant frequency. The inductor is designed as wirewound inductor. wirewound surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. The product complies with automotive standard - aec-q200. It has a standard ±20 % inductance tolerance .

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)

High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)

744771122 POWER-CHOKE WE-PD Data sheet(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)
