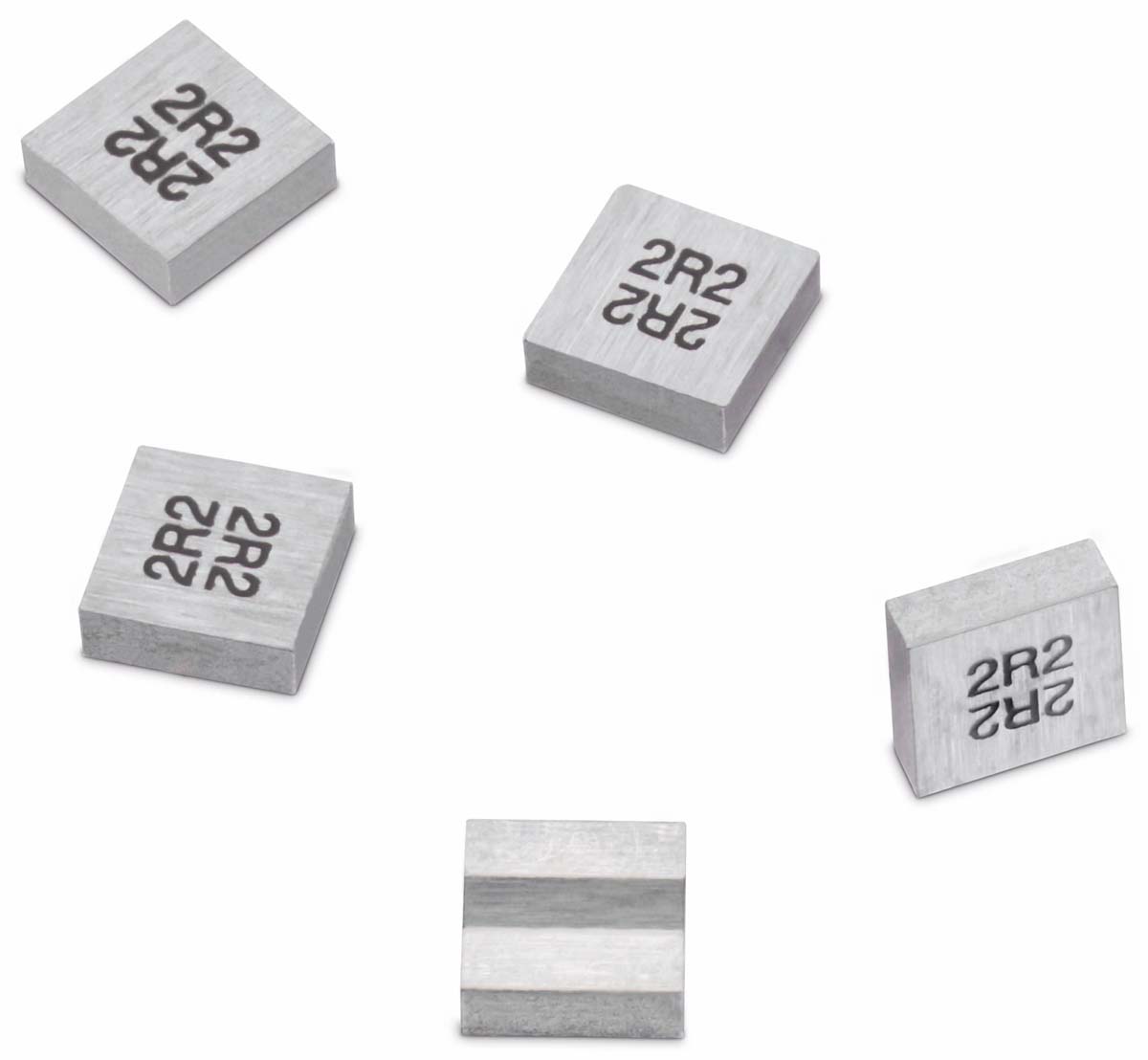

Wurth WE-MAPI Series Type 3020 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20%

Enrgtech Part No: ET14068379
|
Manufacturer Part No:
74438336022
|
Manufacturer: Wurth Elektronik

74438336022 Wurth WE-MAPI Series Type 3020 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20%

Product Information

Inductor Construction:

Wirewound

Termination Style:

Surface Mount

Inductance Tolerance:

±20 %

Maximum Self Resonant Frequency:

42MHz

Automotive Standard:

AEC-Q200

Shielding:

Yes

Core Material:

Magnetic Iron Alloy

Inductance:

2.2 μH

Product Type:

Wirewound Surface Mount Inductor

Maximum Operating Temperature:

125°C

Moulded:

Yes

Maximum DC Current:

2.4A

Checking for live stock

This is Wurth WE-MAPI Series Type 3020 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 2.2 μH ±20% manufactured by Wurth Elektronik. The manufacturer part number is 74438336022. The inductor is designed as wirewound inductor. Moreover, it has surface mount terminal style. It has a standard ±20 % inductance tolerance . It provides 42mhz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 2.2 μh inductance value. wirewound surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. In addition, it is moulded yes . While it carries 2.4a of maximum DC current. Its accurate length is 3mm. Concerning its package and casing, it is 3020. It allows up to 80mω maximum DC resistance. The product we-mapi, is a highly preferred choice for users. The product comes in 3mm depth. In addition, the height is 2mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

WE eiSos Embedded Flyer(Technical Reference)

Voids in Bottom Termination Components (BTC) - ANP036 Application Note(Technical Reference)

Ideal Power Inductors for Energy Efficient Applications - ANP031 Application Note(Technical Reference)

Datasheet(Technical Reference)

Accurate Inductor Loss Determination - Application Note(Technical Reference)

Application Note - The Sham of the High Rated Current(Technical Reference)
