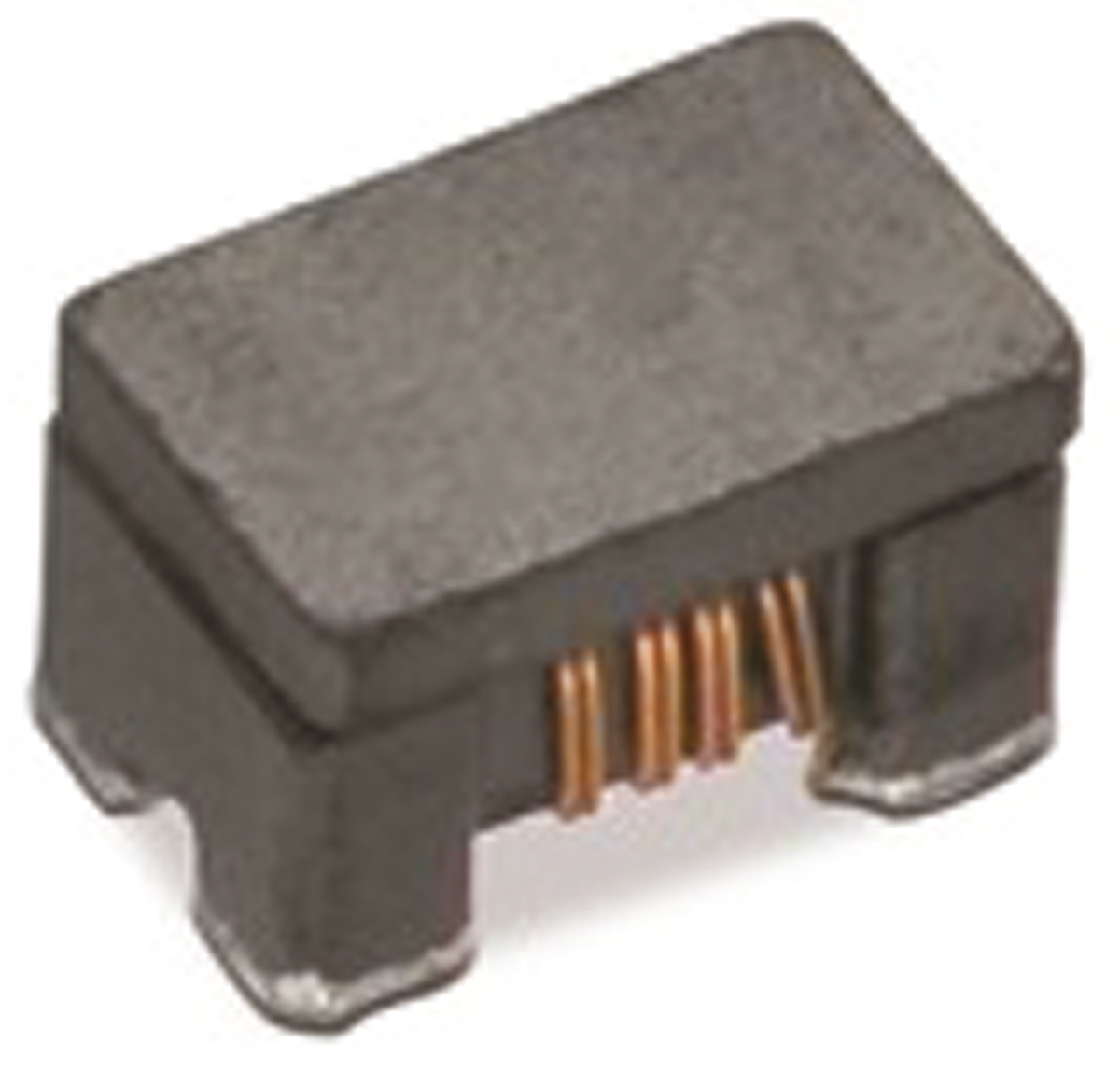

Wurth WE-CNSW HF Series Type 0603 Shielded SMD Common Mode Line Filter with a Ferrite Core, ±25% Dual 500mA Idc

Enrgtech Part No: ET14068350
|
Manufacturer Part No:
7442335900
|
Manufacturer: Wurth Elektronik

7442335900 Wurth WE-CNSW HF Series Type 0603 Shielded SMD Common Mode Line Filter with a Ferrite Core, ±25% Dual 500mA Idc

Product Information

Inductor Construction:

Dual

Termination Style:

Surface Mount

Inductance Tolerance:

±25 %

Maximum Self Resonant Frequency:

8GHz

Automotive Standard:

AEC-Q200

Shielding:

Yes

Core Material:

Ferrite

Inductance:

170 nH

Product Type:

Wirewound Surface Mount Inductor

Maximum Operating Temperature:

125°C

Moulded:

Yes

Maximum DC Current:

500mA

Checking for live stock

This is Wurth WE-CNSW HF Series Type 0603 Shielded SMD Common Mode Line Filter with a Ferrite Core ±25% Dual 500mA Idc manufactured by Wurth Elektronik. The manufacturer part number is 7442335900. The inductor is designed as dual inductor. Moreover, it has surface mount terminal style. It has a standard ±25 % inductance tolerance . It provides 8ghz of maximum self-resonant frequency. The product complies with automotive standard - aec-q200. Furthermore, the product is shielded with yes. The core is manufactured from highly durable and reliable ferrite materials. The product has a 170 nh inductance value. wirewound surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. In addition, it is moulded yes . While it carries 500ma of maximum DC current. Its accurate length is 1.2mm. It contains 4 pins. Concerning its package and casing, it is 0504. It allows up to 270mω maximum DC resistance. The product we-cnsw hf, is a highly preferred choice for users. The product comes in 1mm depth. In addition, the height is 0.9mm. In addition, tape & reel is the available packaging type of the product. Whereas, the minimum operating temperature of the product is -40°c.

WE-CNSW HF Common Mode Filter - 7442335900 Datasheet(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. We ship 7442335900 Internationally to many countries around the world.

Yes. You can also search 7442335900 on website for other similar products.

We accept all major payment methods for all products including ET14068350. Please check your shopping cart at the time of order.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14068350 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14068350.

You can order Wurth Elektronik brand products with 7442335900 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Wurth WE-CNSW HF Series Type 0603 Shielded SMD Common Mode Line Filter with a Ferrite Core, ±25% Dual 500mA Idc. You can also check on our website or by contacting our customer support team for further order details on Wurth WE-CNSW HF Series Type 0603 Shielded SMD Common Mode Line Filter with a Ferrite Core, ±25% Dual 500mA Idc.
