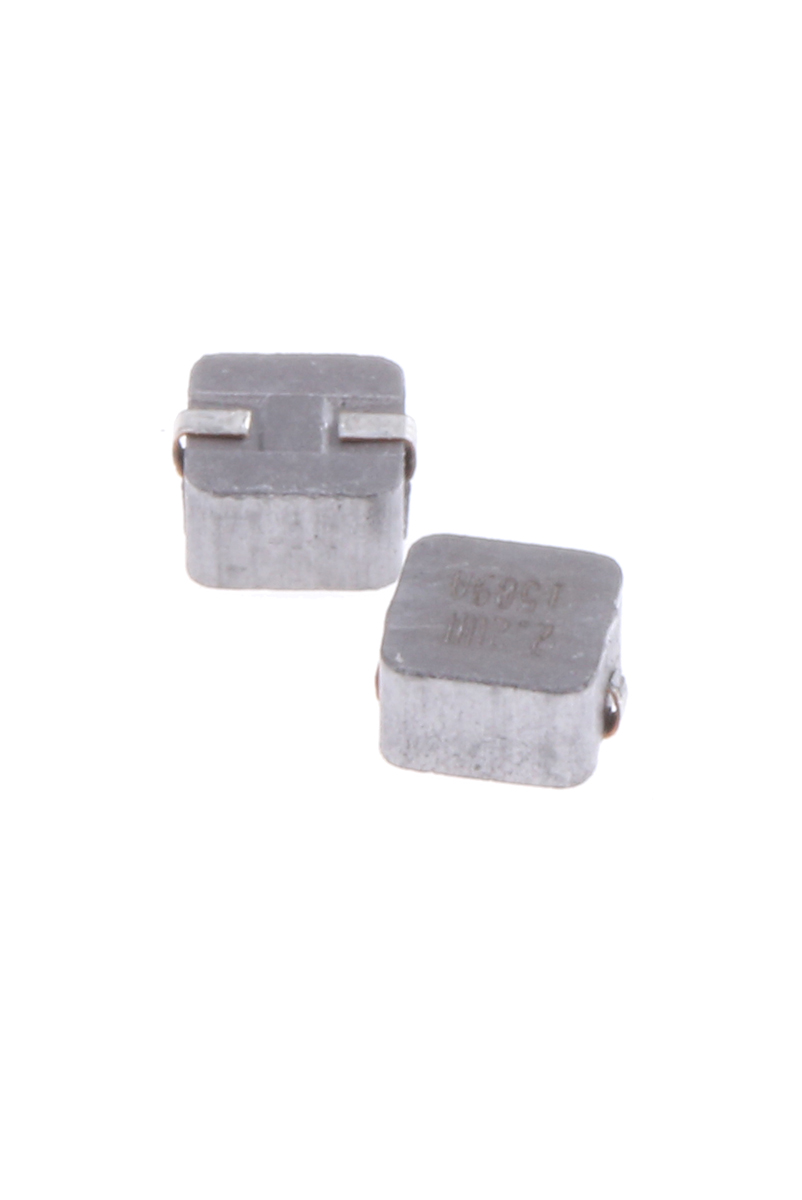

Vishay IHLP Series Type 1212 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.2 μH ±20% Wire-Wound

Enrgtech Part No: ET14030870
|
Manufacturer Part No:
IHLP1212BZER2R2M11
|
Manufacturer: Vishay

IHLP1212BZER2R2M11 Vishay IHLP Series Type 1212 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.2 μH ±20% Wire-Wound

Product Information

Automotive Standard:

Maximum DC Resistance:

46mΩ

Inductance Tolerance:

±20 %

Shielding:

Yes

Inductance:

2.2 μH

Maximum DC Current:

Series:

IHLP

Minimum Operating Temperature:

-55°C

Length:

3.6mm

Height:

2mm

Depth:

3mm

Standards/Approvals:

95, EC, Halogen-free IEC 61249-2-21, RoHS Directive 2002

Checking for live stock

This is IHLP Series Type 1212 Shielded Wire-wound SMD Inductor with a Metal Composite Core 2.2 μH ±20% Wire-Wound manufactured by Vishay. The manufacturer part number is IHLP1212BZER2R2M11. The product complies with automotive standard - no. It allows up to 46mω maximum DC resistance. It has a standard ±20 % inductance tolerance . Furthermore, the product is shielded with yes. The product has a 2.2 μh inductance value. While it carries 3a of maximum DC current. The product ihlp, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Its accurate length is 3.6mm. In addition, the height is 2mm. The product comes in 3mm depth. The core is manufactured from highly durable and reliable metal composite materials. It contains 2 pins. It provides 55mhz of maximum self-resonant frequency. The inductor is designed as shielded inductor. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. In addition, it is moulded yes . Concerning its package and casing, it is 1212.
