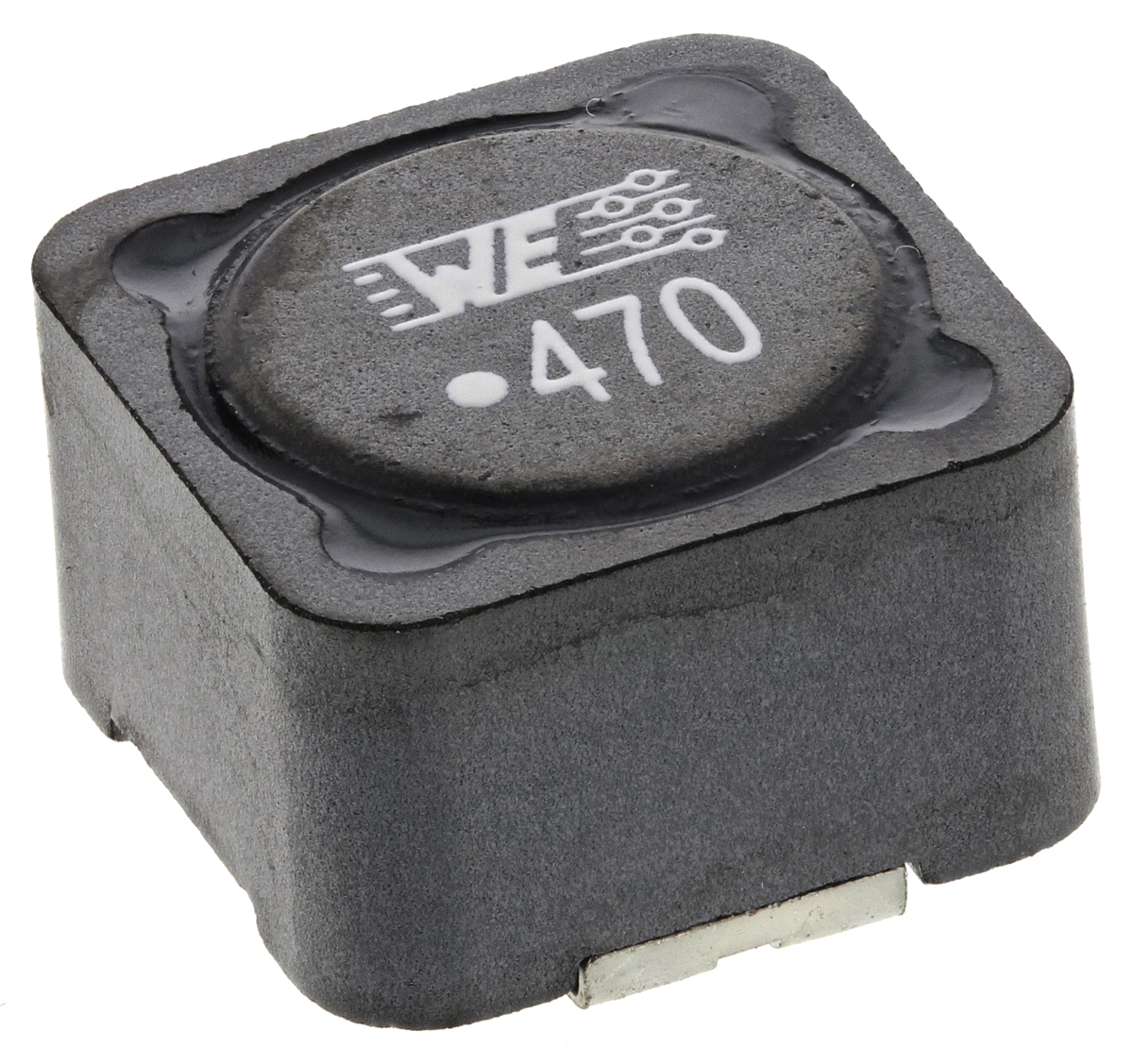

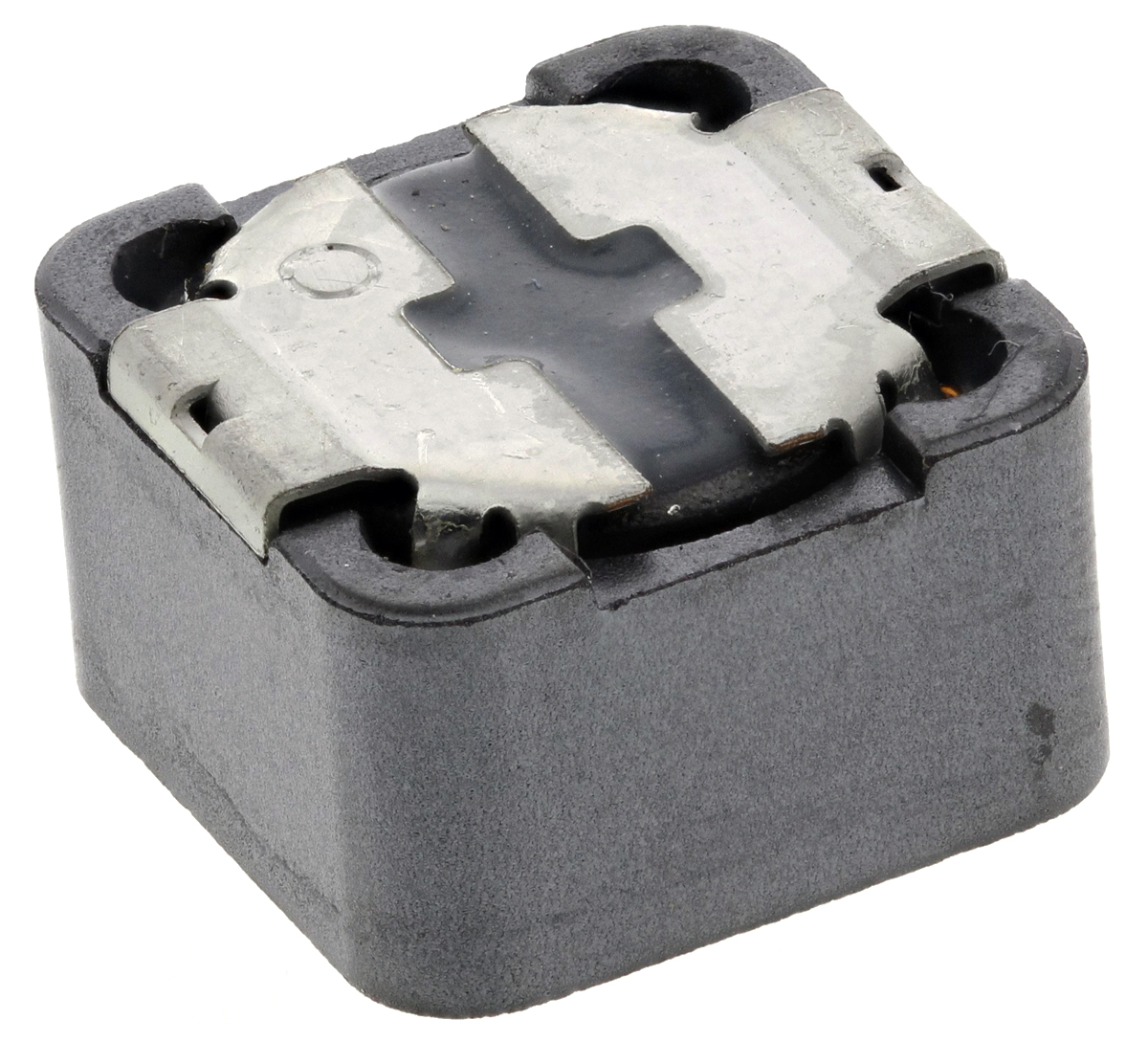

Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% 2.7A Idc

744770147 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% 2.7A Idc
744770147
Wurth Elektronik

Product Information

Maximum DC Resistance:
100mΩ
Inductor Construction:
Wire-Wound
Dimensions:
12 x 12 x 8mm
Shielded:
Yes
Series:
WE-PD
Length:
12mm
Height:
8mm
Maximum DC Current:
2.7A
Depth:
12mm
Core Material:
Ferrite
Inductance:
47 μH
Maximum Self Resonant Frequency:
7.9MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
1280
RoHs Compliant
Checking for live stock

This is Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core 47 μH ±20% 2.7A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744770147. It allows up to 100mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12 x 12 x 8mm. Shielding Options yes. The product we-pd, is a highly preferred choice for users. Its accurate length is 12mm. In addition, the height is 8mm. While it carries 2.7a of maximum DC current. The product comes in 12mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 47 μh inductance value. It provides 7.9mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1280.

pdf icon
Datasheet(Technical Reference)
pdf icon
8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)
pdf icon
High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)
