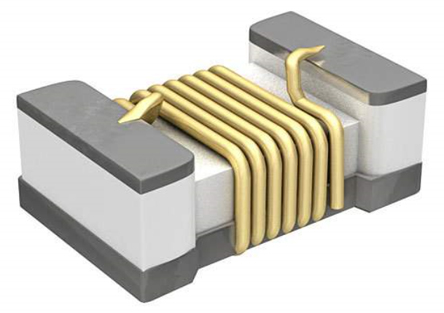

Murata LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core, 100 nH ±5% Wire-Wound 120mA Idc Q:20

LQW15ANR10J00D Murata LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core, 100 nH ±5% Wire-Wound 120mA Idc Q:20
Murata

Product Information

Maximum DC Resistance:
2.52Ω
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
No
Series:
LQW15A
Minimum Quality Factor:
20
Length:
1mm
Height:
0.5mm
Maximum DC Current:
120mA
Depth:
0.6mm
Core Material:
Ferrite
Inductance:
100 nH
Maximum Self Resonant Frequency:
1.5GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Minimum Operating Temperature:
-55°C
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core 100 nH ±5% Wire-Wound 120mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW15ANR10J00D. It allows up to 2.52ω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options no. The product lqw15a, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 120ma of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 100 nh inductance value. It provides 1.5ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402 (1005m).

pdf icon
Chip Coils - LQW15A_00 Series (0402 size)(Technical Reference)
