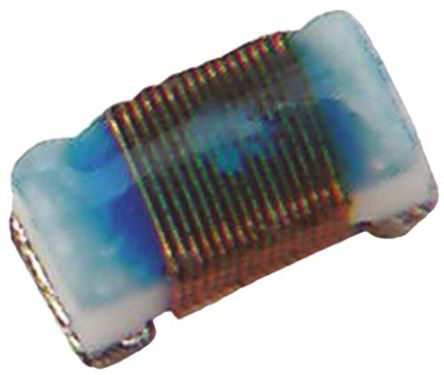

Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 330mA Idc Q:20

LQW04AN10NJ00D Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 330mA Idc Q:20
LQW04AN10NJ00D Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 330mA Idc Q:20
Murata

Product Information

Inductance Tolerance:
±5 %
Maximum DC Resistance:
260mΩ
Shielding:
No
Minimum Quality Factor:
20
Maximum DC Current:
330mA
Series:
LQW
Length:
0.8mm
Height:
0.4mm
Depth:
0.4mm
Core Material:
Ferrite
Inductance:
10 nH
Maximum Self Resonant Frequency:
7GHz
Inductor Construction:
Wirewound
Product Type:
Surface Mount Inductor
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-55°C
Package/Case:
03015
RoHs Compliant
Checking for live stock

This is LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core 10 nH ±5% Wire-Wound 330mA Idc Q:20 manufactured by Murata. The manufacturer part number is LQW04AN10NJ00D. It has a standard ±5 % inductance tolerance . It allows up to 260mω maximum DC resistance. Furthermore, the product is shielded with no. It has minimum 20 quality factors. While it carries 330ma of maximum DC current. The product lqw, is a highly preferred choice for users. Its accurate length is 0.8mm. In addition, the height is 0.4mm. The product comes in 0.4mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 10 nh inductance value. It provides 7ghz of maximum self-resonant frequency. The inductor is designed as wirewound inductor. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 03015.

pdf icon
LQW04A Series (03015 Size) Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship LQW04AN10NJ00D Internationally to many countries around the world.
Yes. You can also search LQW04AN10NJ00D on website for other similar products.
We accept all major payment methods for all products including ET13915502. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13915502 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Murata" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13915502.
You can order Murata brand products with LQW04AN10NJ00D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 330mA Idc Q:20. You can also check on our website or by contacting our customer support team for further order details on Murata LQW04A Series Type 03015 Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 330mA Idc Q:20.
