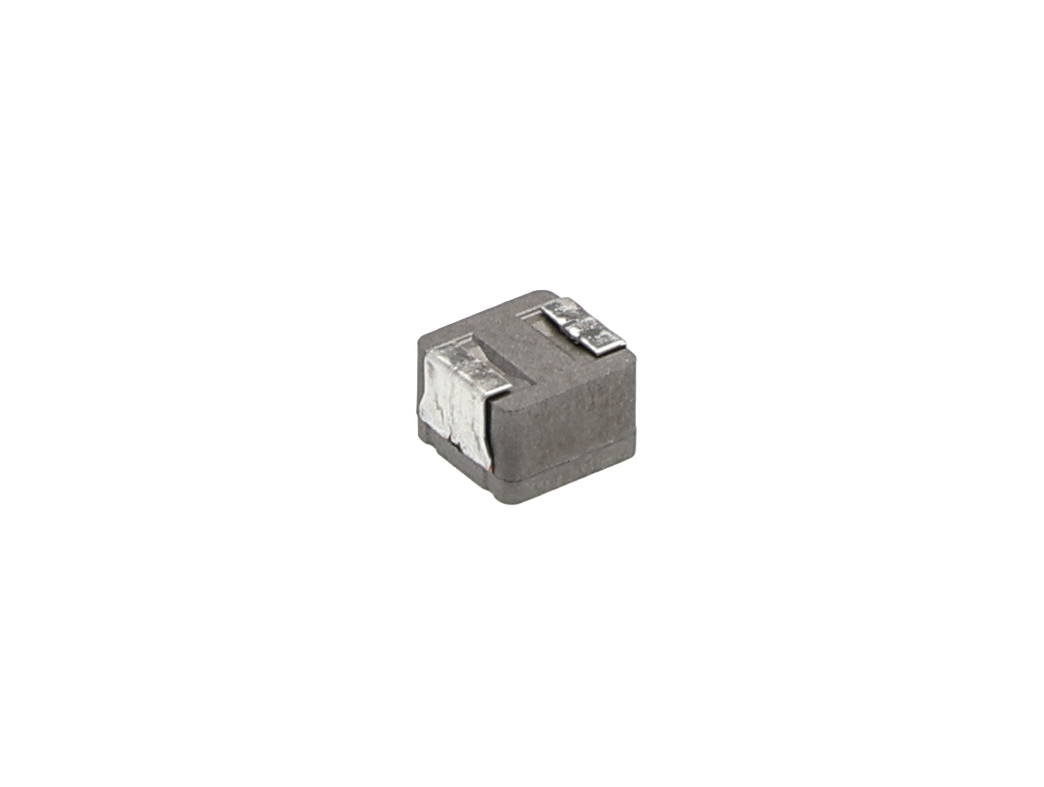

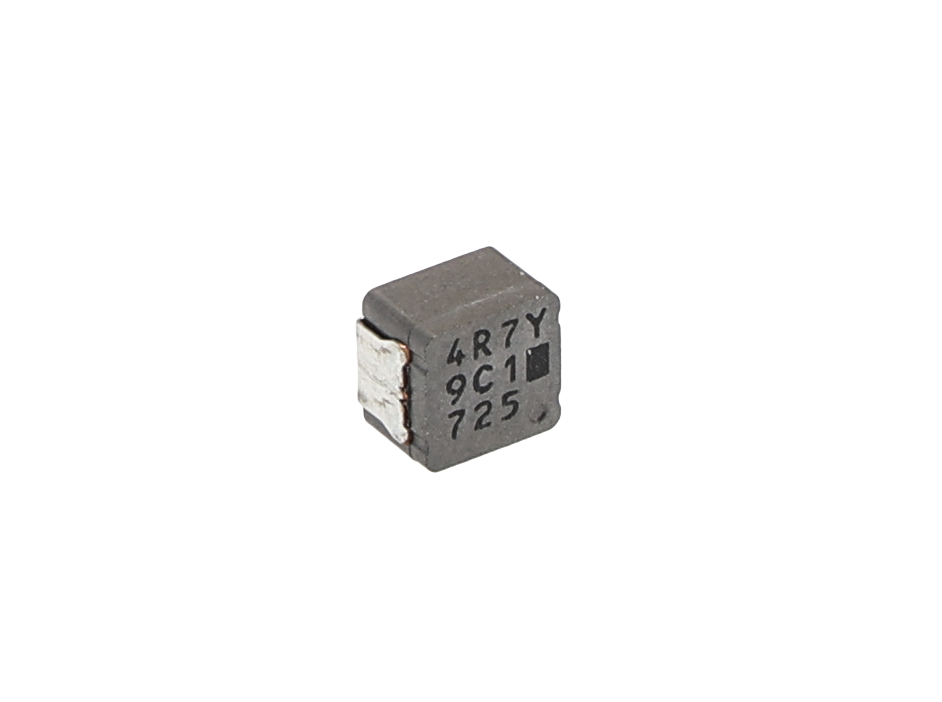

Panasonic ETQP4M Series Type 0540 SMD Common Mode Choke with a Metal Core, 4.7 μH ±20% Wire-Wound 7.7A Idc

Enrgtech Part No: ET13860559
|
Manufacturer Part No:
ETQP4M4R7YFP
|
Manufacturer: Panasonic

ETQP4M4R7YFP Panasonic ETQP4M Series Type 0540 SMD Common Mode Choke with a Metal Core, 4.7 μH ±20% Wire-Wound 7.7A Idc

Product Information

Automotive Standard:

AEC-Q200

Maximum DC Resistance:

39.6mΩ

Inductance Tolerance:

20 %

Shielding:

Yes

Minimum Operating Temperature:

-40°C

Maximum DC Current:

7.7A

Series:

ETQP4M

Termination Style:

Surface Mount

Length:

5.5mm

Height:

4mm

Depth:

5mm

Standards/Approvals:

RoHS Compliant

Checking for live stock

This is ETQP4M Series Type 0540 SMD Common Mode Choke with a Metal Core 4.7 μH ±20% Wire-Wound 7.7A Idc manufactured by Panasonic. The manufacturer part number is ETQP4M4R7YFP. The product complies with automotive standard - aec-q200. It allows up to 39.6mω maximum DC resistance. It has a standard 20 % inductance tolerance . Furthermore, the product is shielded with yes. Whereas, the minimum operating temperature of the product is -40°c. While it carries 7.7a of maximum DC current. The product etqp4m, is a highly preferred choice for users. Moreover, it has surface mount terminal style. Its accurate length is 5.5mm. In addition, the height is 4mm. The product comes in 5mm depth. The core is manufactured from highly durable and reliable metal materials. The product has a 4.7 μh inductance value. It provides 100khz of maximum self-resonant frequency. The inductor is designed as wirewound inductor. surface mount inductor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. In addition, it is moulded yes . Concerning its package and casing, it is 0540.
