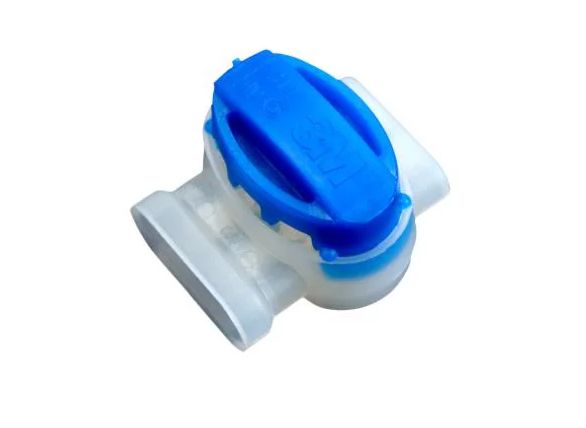

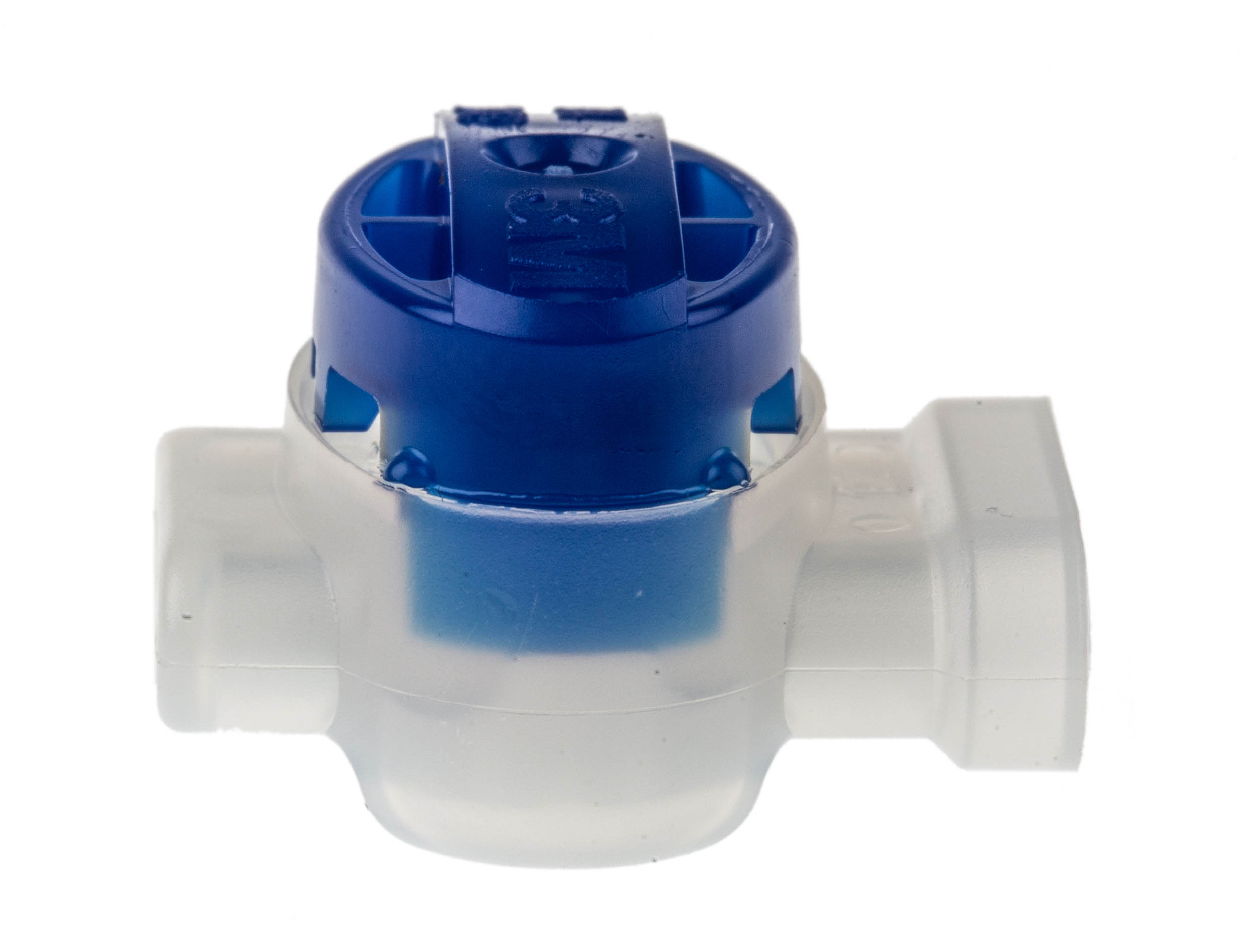

3M Scotchlok Series, Connector, with Crimp Termination Method

Enrgtech Part No: ET13851804
|
Manufacturer Part No:
SCOTCHLOK 314
|
Manufacturer: 3M

SCOTCHLOK-314 3M Scotchlok Series, Connector, with Crimp Termination Method

Product Information

Diameter:

3.8mm

Splice Type:

Pigtail

Series:

Scotchlok

Colour:

Blue

Minimum Wire Size AWG:

14AWG

Contact Plating:

Tin

Overall Length:

24.1mm

Insulation:

Insulated

Maximum Wire Size AWG:

22AWG

Wire Size:

22 to 14 AWG

Contact Dimensions:

24.1 x 11.9 x 23.4mm

Insulation Material:

Flame Retardant Nylon

Checking for live stock

The 3M Scotchlok 314 is a moisture-resistant insulated IDC connector designed for splicing 2 or 3 copper wires (22-14 AWG / 0.5-1.5 mm²). Its self-stripping brass U-contact and flame-retardant nylon body ensure secure electrical connections in commercial and industrial wiring applications.

Benefits of Using the 3M 314 Insulated IDC Connector

Employing the 314 connector streamlines wiring splices and enhances reliability via a sealed grease-filled chamber. It protects against moisture and corrosion and complies with UL/CSA certifications for low-voltage environments.

Standout Features & Key Uses of Splice Connectors

Supports wire sizes 22-14 AWG (0.5-1.5 mm²), solid or stranded copper
Rated for 600 V building wire, 1000 V for signs/fixtures, operating up to 105 °C
Self-stripping design and built-in mineral-oil grease seal for moisture resistance
Commonly used in lighting control panels, building wiring splices, HVAC systems and field installations.

Datasheet(Technical Reference)

3M IDC Datasheet(Technical Reference)
