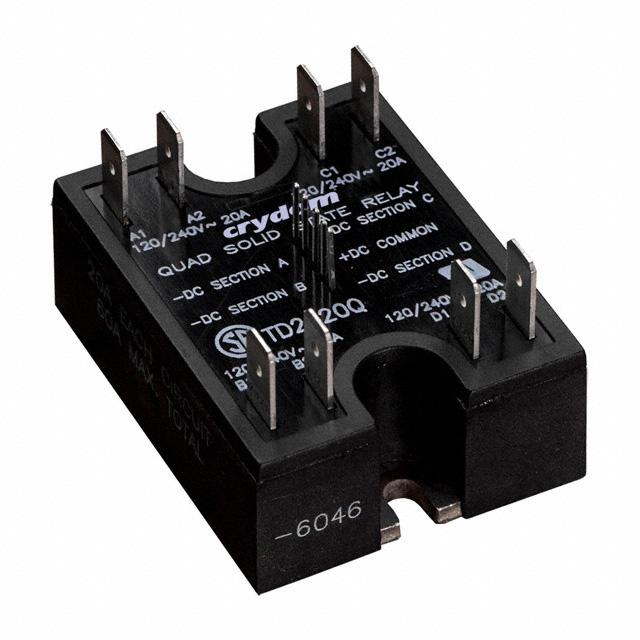

Sensata-Crydom TD2420Q
Product Information
Dimensions:
58.4 x 45.7 x 21.6mm
Relay Type:
Solid State Relay
Capacitance:
10pF
Maximum Load Voltage:
280 V
Output Device:
Triac
Load Voltage Range:
24 → 280V ac
Standards Met:
CE
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
10 mA
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Terminal Type:
Faston
Control Voltage Range:
4 → 15 V dc
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
0.15 A
Length:
58.4mm
Maximum Turn On Time:
1/2 Cycle
Maximum Load Current:
20 A
Mounting Type:
Surface Mount
Series:
Quad
Depth:
45.7mm
Height:
21.6mm
Minimum Operating Temperature:
-40°C
Maximum Control Voltage:
15 V
HTSUS:
8536.49.0080
RoHS Status:
ROHS3 Compliant
Termination Style:
Quick Connect - 0.250" (6.3mm)
Package / Case:
Hockey Puck
Voltage - Input:
4 ~ 15VDC
Load Current:
20 A
REACH Status:
REACH Affected
Output Type:
AC, Zero Cross
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO (1 Form A) x 4
standardLeadTime:
10 Weeks
Mounting Type:
Chassis Mount
Series:
T
Voltage - Load:
24 V ~ 280 V
Supplier Device Package:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TD2420Q on website for other similar products.
We accept all major payment methods for all products including ET16687983. Please check your shopping cart at the time of order.
You can order Sensata-Crydom brand products with TD2420Q directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Solid State Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sensata-Crydom TD2420Q. You can also check on our website or by contacting our customer support team for further order details on Sensata-Crydom TD2420Q.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16687983 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sensata-Crydom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16687983.
Yes. We ship TD2420Q Internationally to many countries around the world.
This is manufactured by Sensata-Crydom. The manufacturer part number is TD2420Q. The given dimensions of the product include 58.4 x 45.7 x 21.6mm. This is basically a solid state relay. It provides a 10pf of capacitance value. While its maximum load voltage is 280 v. Its output device includes triac. Its load voltage range is about 24 → 280v ac . The product complies with all safety standards, such as ce. Additionally, it has a minimum 4 v dc control voltage . Additionally, its off state leakage current is 10 ma . This product uses zero cross switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a faston type. Moreover, it has a typical 4 → 15 v dc control voltage range . The product has -40 → +80°c of operating temperature range. The product has a minimum 0.15 a load current . Its accurate length is 58.4mm. The product has a maximum 1/2 cycle turn on time . It carries 20 a maximum load current. The product is available in surface mount configuration. The product quad, is a highly preferred choice for users. The product comes in 45.7mm depth. In addition, the height is 21.6mm. Whereas, the minimum operating temperature of the product is -40°c. The product has a maximum 15 v control voltage . It is assigned with possible HTSUS value of 8536.49.0080. The product is rohs3 compliant. Moreover, it has quick connect - 0.250" (6.3mm) terminal style. Moreover, the product comes in hockey puck. The possible product's input voltage is 4 ~ 15vdc. It has a typical 20 a load current. In addition, it is reach affected. Furthermore, it has aac, zero cross output. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. It has an integral spst-no (1 form a) x 4 circuit. It has a long 10 weeks standard lead time. The product is available in chassis mount configuration. The product t, is a highly preferred choice for users. The given load voltage is 24 v ~ 280 v. The product is designated with the ear99 code number.
