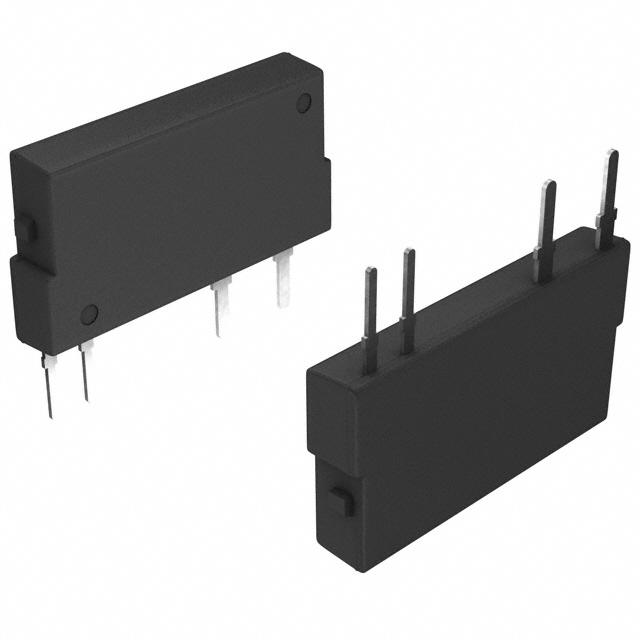

Sensata-Crydom CN024D24
Product Information
Dimensions:
28 x 5 x 15mm
Relay Type:
Solid State Relay
Capacitance:
1.5pF
Maximum Load Voltage:
24 V dc
Output Device:
MOSFET
Load Voltage Range:
0 → 24V dc
Standards Met:
CE, cURus
Minimum Control Voltage:
15 V dc
Package Style:
Mini-SIP
Off State Leakage Current:
0.001 mA
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Terminal Type:
Through Hole
Control Voltage Range:
15 → 30 V dc
Operating Temperature Range:
-20 → +80°C
Minimum Load Current:
1 mA
Contact Configuration:
SPST
Length:
28mm
Maximum Turn On Time:
0.35ms
Maximum Load Current:
3.5 A
Mounting Type:
PCB Mount
Series:
CN
Depth:
5mm
Height:
15mm
Minimum Operating Temperature:
-20°C
Maximum Control Voltage:
30 V dc
Minimum Load Voltage:
0 V dc
HTSUS:
8536.41.0030
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Package / Case:
4-SIP
Voltage - Input:
15 ~ 30VDC
Load Current:
3.5 A
REACH Status:
REACH Unaffected
Output Type:
DC
edacadModel:
CN024D24 Models
edacadModelUrl:
/en/models/2263901
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
standardLeadTime:
12 Weeks
Mounting Type:
Through Hole
Series:
CN
Voltage - Load:
0 V ~ 24 V
Supplier Device Package:
4-SIP
Base Product Number:
CN024D
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CN024D24 on website for other similar products.
We accept all major payment methods for all products including ET16684365. Please check your shopping cart at the time of order.
You can order Sensata-Crydom brand products with CN024D24 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Solid State Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sensata-Crydom CN024D24. You can also check on our website or by contacting our customer support team for further order details on Sensata-Crydom CN024D24.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16684365 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sensata-Crydom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16684365.
Yes. We ship CN024D24 Internationally to many countries around the world.
This is manufactured by Sensata-Crydom. The manufacturer part number is CN024D24. The given dimensions of the product include 28 x 5 x 15mm. This is basically a solid state relay. It provides a 1.5pf of capacitance value. While its maximum load voltage is 24 v dc. Its output device includes mosfet. Its load voltage range is about 0 → 24v dc . The product complies with all safety standards, such as ce, curus. Additionally, it has a minimum 15 v dc control voltage . Its package is of mini-sip style . Additionally, its off state leakage current is 0.001 ma . This product uses zero cross switching mechanism. It has a maximum operating temperature of +80°c. The terminal is a through hole type. Moreover, it has a typical 15 → 30 v dc control voltage range . The product has -20 → +80°c of operating temperature range. The product has a minimum 1 ma load current . The contact is equipped with spst configuration. Its accurate length is 28mm. The product has a maximum 0.35ms turn on time . It carries 3.5 a maximum load current. The product is available in pcb mount configuration. The product cn, is a highly preferred choice for users. The product comes in 5mm depth. In addition, the height is 15mm. Whereas, the minimum operating temperature of the product is -20°c. The product has a maximum 30 v dc control voltage . It carries up to 0 v dc minimum load voltage. It is assigned with possible HTSUS value of 8536.41.0030. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Moreover, the product comes in 4-sip. The possible product's input voltage is 15 ~ 30vdc. It has a typical 3.5 a load current. In addition, it is reach unaffected. Furthermore, it has adc output. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no (1 form a) circuit. It has a long 12 weeks standard lead time. The product is available in through hole configuration. The given load voltage is 0 v ~ 24 v. 4-sip is the supplier device package value. Moreover, it corresponds to cn024d, a base product number of the product. The product is designated with the ear99 code number.
