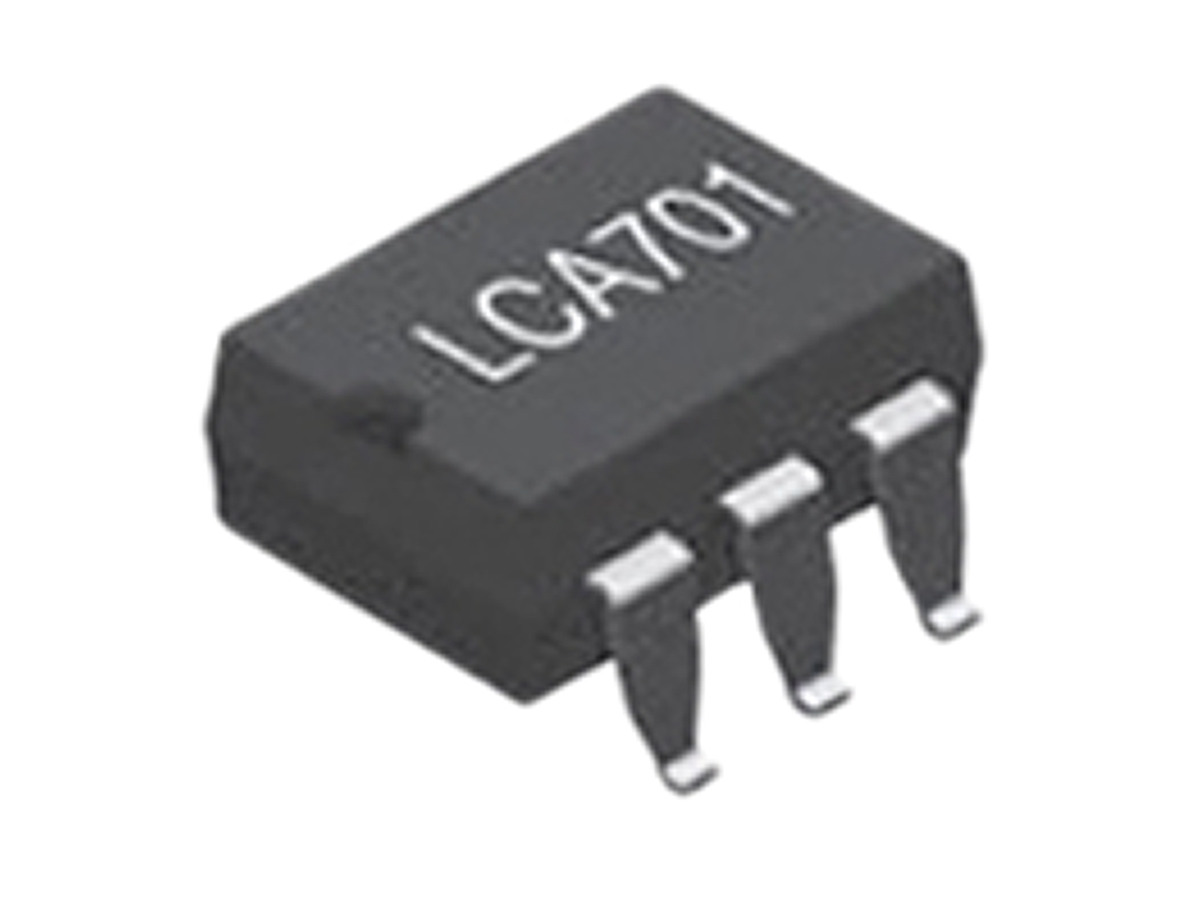

IXYS 1.5 A rms/A dc, 2.5 A dc SPNO Solid State Relay, AC/DC, Surface Mount MOSFET
Product Information
Dimensions:
8.382 x 6.35 x 3.302mm
Relay Type:
OptoMOS
Capacitance:
200pF
Output Device:
MOSFET
Standards Met:
CSA, EN/IEC 60950, Certificate TUV B 09 07 49140 004, UL File E76270
Package Style:
Small - 6 Pin
Off State Leakage Current:
1 μA
Switching Type:
AC/DC
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Operating Temperature Range:
-40 → +85°C
Contact Configuration:
SPST
Length:
8.4mm
Maximum Turn On Time:
4ms
Special Features:
Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable
Maximum Load Current:
1.5 A rms/A dc, 2.5 A dc
Mounting Type:
Surface Mount
Depth:
6.4mm
Height:
3.3mm
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Checking for live stock
FAQs
Yes. You can also search LCA701S on website for other similar products.
We accept all major payment methods for all products including ET13883545. Please check your shopping cart at the time of order.
You can order IXYS brand products with LCA701S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Solid State Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IXYS 1.5 A rms/A dc, 2.5 A dc SPNO Solid State Relay, AC/DC, Surface Mount MOSFET. You can also check on our website or by contacting our customer support team for further order details on IXYS 1.5 A rms/A dc, 2.5 A dc SPNO Solid State Relay, AC/DC, Surface Mount MOSFET.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13883545 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IXYS" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13883545.
Yes. We ship LCA701S Internationally to many countries around the world.
This is 1.5 A rms/A dc 2.5 A dc SPNO Solid State Relay AC/DC Surface Mount MOSFET manufactured by IXYS. The manufacturer part number is LCA701S. The given dimensions of the product include 8.382 x 6.35 x 3.302mm. This is basically a optomos. It provides a 200pf of capacitance value. Its output device includes mosfet. The product complies with all safety standards, such as csa, en/iec 60950, certificate tuv b 09 07 49140 004, ul file e76270. Its package is of small - 6 pin style . Additionally, its off state leakage current is 1 μa . This product uses ac/dc switching mechanism. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. The product has -40 → +85°c of operating temperature range. The contact is equipped with spst configuration. Its accurate length is 8.4mm. The product has a maximum 4ms turn on time . The product also provides special features, such as arc-free with no snubbing circuits, high reliability, immune to radiate fm interface, no emi/rfi generation, wave solderable. It carries 1.5 a rms/a dc, 2.5 a dc maximum load current. The product is available in surface mount configuration. The product comes in 6.4mm depth. In addition, the height is 3.3mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles.
