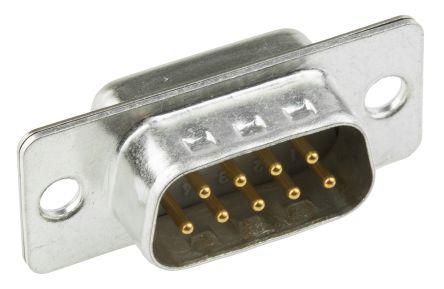

Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 9 Way, 200 V ac/dc, 5A

FDE-9PTI2-1 Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 9 Way, 200 V ac/dc, 5A
FDE-9PTI2/1
FDE-9PTI2-1 Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 9 Way, 200 V ac/dc, 5A
Cinch

Product Information

Current Rating:
5A
D-Sub Shell Size:
E
Mounting Type:
Panel Mount
Voltage Rating:
200 V ac/dc
Gender:
Male
Body Orientation:
Straight
D Connector Type:
Filtered D-Sub
Length:
30.81mm
Series:
FD
Number of Contacts:
9
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

Enhance signal integrity and EMI/RFI protection in industrial and technical applications with the Cinch FDE‑9PTI2/1‑LF filtered D‑sub connector. Designed to exceed DIN Class‑2 standards, this robust plug delivers reliable performance where precision matters. Steel body with bright tin front shell and nickel rear; copper alloy contacts plated gold over nickel for reliable conductivity and durability.

Crucial Features of the Product

  • Contact Configuration: 9‑way (DE‑9 shell size), male plug, solder‑cup termination
  • Filtering & Capacitance: Integrated filter with 1000 pF capacitance (each contact to ground) for enhanced EMI suppression.
  • Electrical Ratings: Rated for up to 200 V AC/DC and 5 A current, catering to both signal and low-power applications.
  • Environmental & Safety: Operating –25 °C to +85 °C; UL94V‑0 flame rating indicates superior flame resistance; RoHS compliant.
  • Standards Compliance: Meets CECC‑73301‑802, MIL‑C‑24308, DIN‑41652, BS‑9523 specifications, ideal for military, industrial, and demanding commercial environments.
  • Mounting: Through-hole/panel mount with 3.05 mm diameter fixing holes for secure installation.

Unmatched Benefits and Usage Information

  • Superior EMI/RFI Rejection: With built-in filtering and a shielded metal body, this connector maintains signal clarity in noisy RF environments.
  • High Durability and Safety: The flame-rated body, gold-plated contacts, and solder-cup construction provide long-term reliability in demanding UK industrial settings.
  • Versatile Integration: The compact DE-9 design and secure mounting make it suitable for instrumentation, telecommunications, aerospace, test rigs, and control systems.
  • Standards-Grade Assurance: Compliance with central defence and industrial standards provides peace of mind for OEMs and system engineers.

pdf icon
Sub-D Connectors with Filters(Technical Reference)
pdf icon
Filter D Connectors Technical Dats Sheet(Technical Reference)
