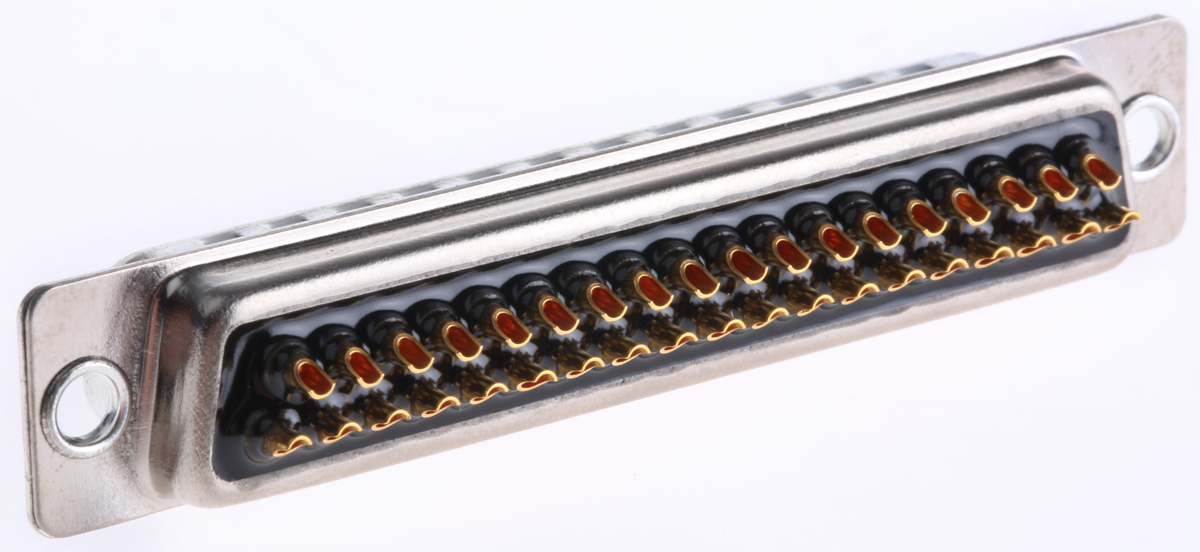

Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 37 Way, 200 V ac/dc, 5A

Enrgtech Part No: ET13980069
|
Manufacturer Part No:
FDC-37PTI2/1
|
Manufacturer: Cinch

FDC-37PTI2-1 Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 37 Way, 200 V ac/dc, 5A

Product Information

Series:

Current Rating:

5.0A

Dimensions:

69.32 x 10.2 x 12.55mm

Mounting Type:

Panel Mount

Voltage Rating:

200.0 V

Gender:

Male

Body Orientation:

Straight

Termination Method:

Solder

Length:

69.32mm

D Connector Type:

Filtered D-Sub

Housing Material:

Steel

Width:

10.2mm

Checking for live stock

Elevate your system's signal integrity with the Cinch FDC-37PTI2/1, a precision-engineered 37-way filtered D-sub plug. Designed for EMI-sensitive environments, this connector is built to meet the exacting needs of industrial, military, and interfacing applications across the UK and beyond.

Technical Specifications of the product

Contact Count & Pitch: 37‑way, standard 2.76 mm pitch
Termination: Solder bucket (solder‑cup) connectors for secure wire connections
Shell Size & Mounting: Size C, panel‑mount with straight male orientation
Material & Plating: Steel housing with bright tin finish; electrolytic nickel rear shell; gold‑plated copper‑alloy pins
Electrical Ratings: 200 V AC/DC, 5 A current, ≤ 5 mΩ contact resistance
Filtering Feature: 1000 pF tubular capacitors embedded at each contact to ground, integral EMI suppression for VHF/UHF interference control
Environmental Specs: Operating range –25 °C to +125 °C; UL94V‑0 flame rating; RoHS-compliant standards including CECC‑73301‑802, MIL‑C‑24308, DIN‑41652, BS‑9523, F0013, BT‑217, HE‑501
Physical Dimensions: 69.32 mm length × 10.2 mm width × 12.55 mm depth

Benefits that Come with It

Integrated EMI Protection: Built-in capacitors per contact eliminate the need for external filters, streamlining board design and enhancing signal fidelity.
Robust Build for Harsh Environments: Steel housing with tin plating and epoxy-sealed components offers exceptional resilience and EMI shielding.
Reliable Performance: Gold-plated contacts and precise manufacturing tolerances ensure low resistance and consistent mating cycles.

Application Potential of the Panel Mount Filtered Solder D-Sub Connector Plug

Perfect for industrial control systems, military hardware, test instrumentation, telecommunications panels, and any high-density D-Sub interfacing where EMI suppression and environmental durability are essential.

Sub-D Connectors with Filters(Technical Reference)

Filter D Connectors Technical Datasheet(Technical Reference)
