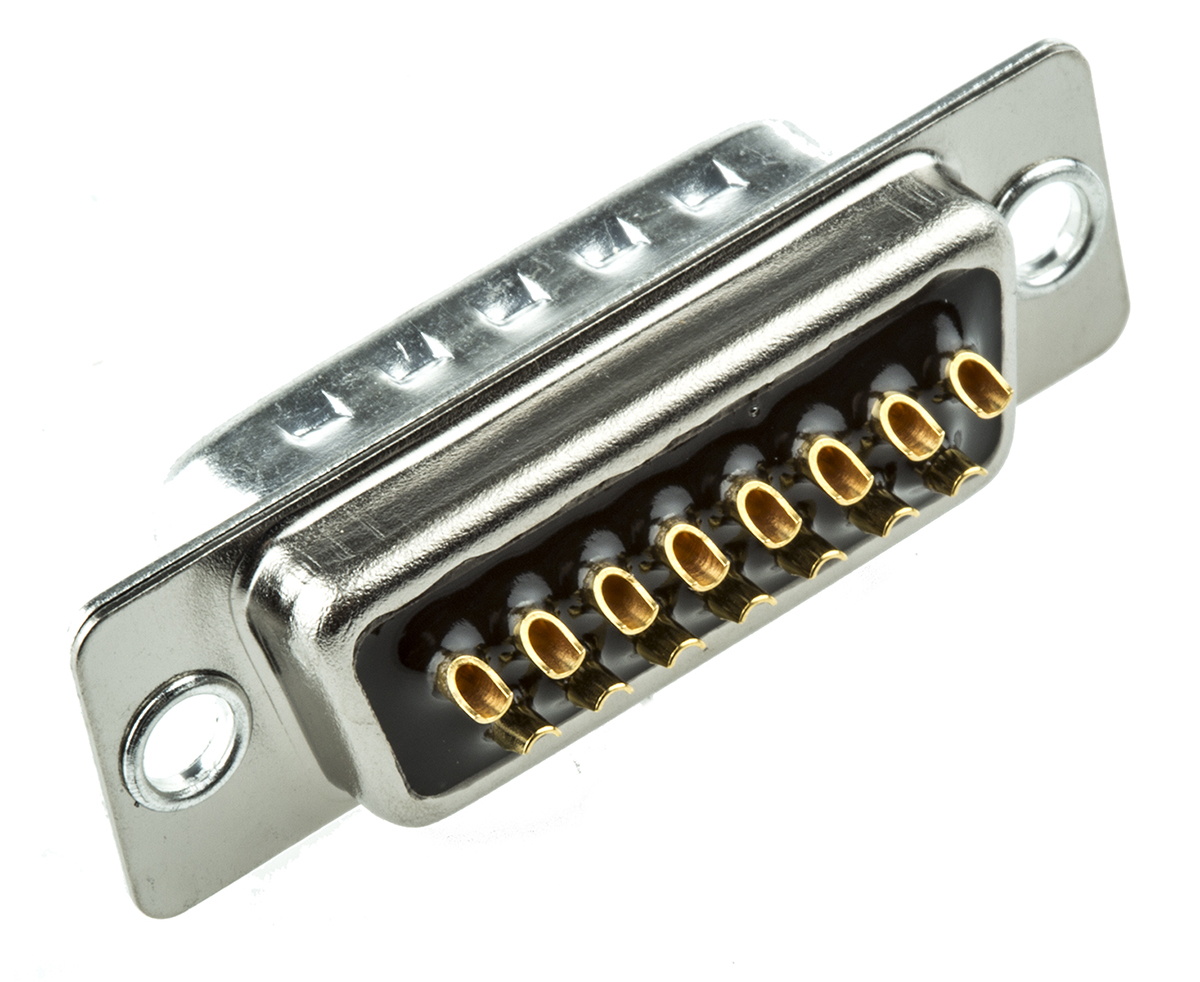

Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 15 Way, 200 V ac/dc, 5A

Enrgtech Part No: ET13881462
|
Manufacturer Part No:
FDA-15PTI2/1
|
Manufacturer: Cinch

FDA-15PTI2-1 Cinch FD Series Panel Mount Filtered Solder D-Sub Connector Plug, 15 Way, 200 V ac/dc, 5A

Product Information

Series:

Current Rating:

5.0A

Dimensions:

39.14 x 10.2 x 12.55mm

Mounting Type:

Panel Mount

Voltage Rating:

200.0 V

Gender:

Male

Body Orientation:

Straight

Termination Method:

Solder

Length:

39.14mm

D Connector Type:

Filtered D-Sub

Housing Material:

Steel

Width:

10.2mm

Checking for live stock

The Cinch FDA-15PTI2/1 is a 15-way, filtered D-sub plug designed for panel mounting and solder termination. Built for dependable EMC performance in industrial, test, telecom, and defence equipment, it integrates tubular capacitors on every contact to suppress conducted noise at the connector interface, helping UK engineers meet enclosure-level emissions targets without the need for add-on ferrites or bulky filters.

Core Features of the 5-Way, Filtered D-sub Plug

Contacts / Gender: 15, plug.
Mounting / Termination: Panel mount, solder cups.
Filtering: 1000 pF per line (typical for this variant) for line-to-ground attenuation across RF bands.
Electrical ratings: 5 A per contact, 200 V dc or ac peak.
Materials: Copper-alloy contacts; steel shell with bright-tin front and nickel rear; high-impact epoxy and glass-filled polyester insulators.
Mechanical / size: A-shell, 2.76 mm pitch; body approx. 39.14 × 10.2 × 12.55 mm.
Environmental: Insulation resistance ≥ 5 × 10⁸ Ω; operating −40 to +125 °C; RoHS lead-free variants available through distribution.
Standards: Meets dimensional requirements of CECC 73301-802 and MIL-C-24308 for D sub interfaces.

What Benefits Does It Offer to Users?

Cleaner signals at the panel: Integrated capacitors reduce conducted EMI at the point of entry, improving system EMC margins and saving space on PCBs.
Drop-in D sub form factor: Same footprint as standard D sub connectors, easing retrofit work on legacy racks and field equipment.
Robust construction: A steel shell, copper-alloy contacts, and high-impact insulating compounds support repeatable mating cycles and dependable service in laboratory and production environments.
Spec clarity for procurement: A-shell, 2.76 mm pitch, 5 A, 200 V, and dimensional data that UK teams expect for drawings and compliance packs.

Usage Information

Test racks and instrumentation I/O panels
Telecoms and data-comms chassis
Defence and industrial control enclosures requiring improved conducted-noise performance
