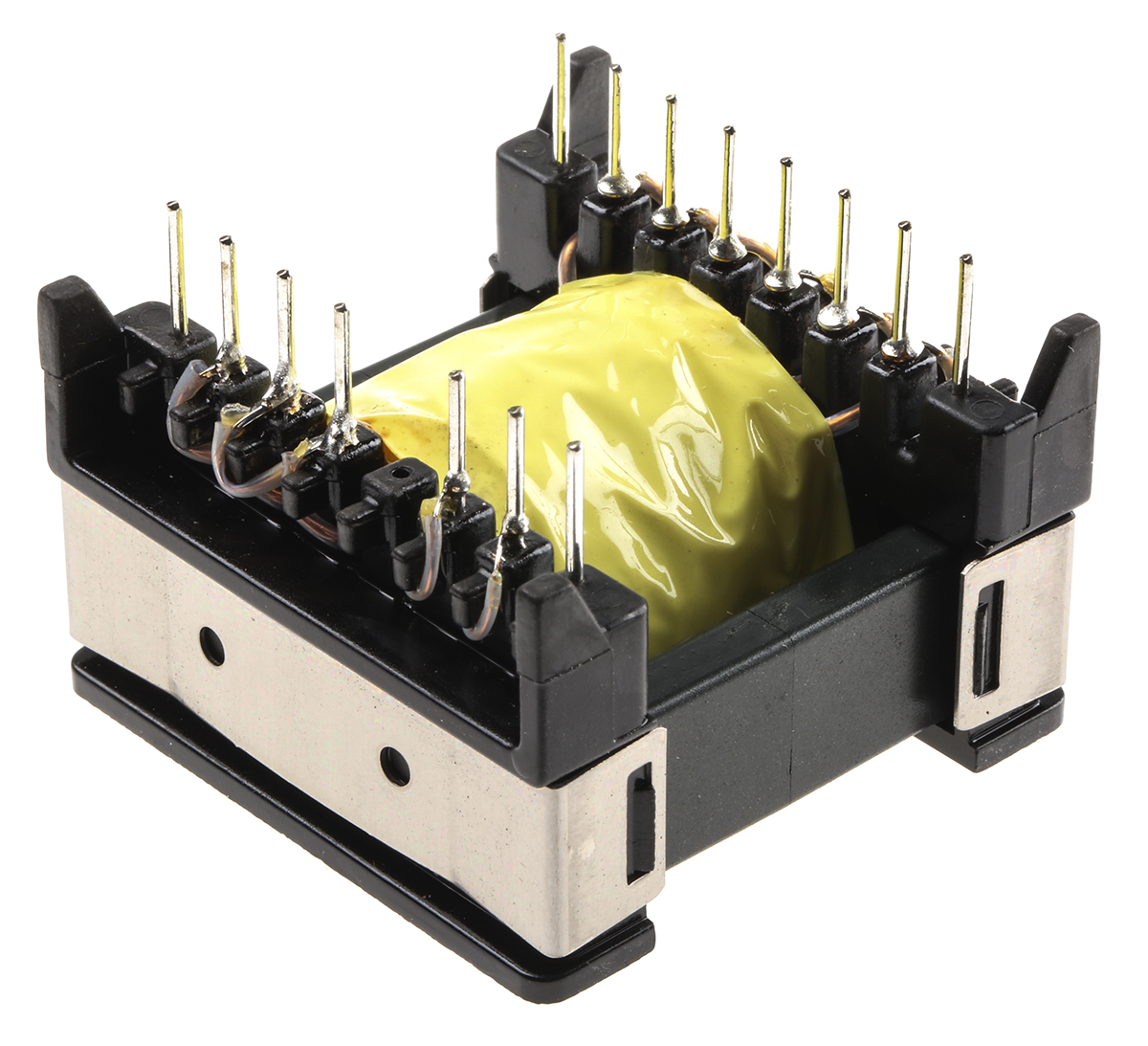

4 Output 70 → 120W Flyback SMPS Transformer, 85 → 265V ac, 3.3 → 6.5 V ac, 9 → 16.5 V ac

74060 4 Output 70 → 120W Flyback SMPS Transformer, 85 → 265V ac, 3.3 → 6.5 V ac, 9 → 16.5 V ac
74060
Myrra

Product Information

Number of Outputs:
4
Maximum Temperature:
+50°C
Secondary Current:
3 A, 4 A, 5 A
Dimensions:
49 x 46 x 38mm
Mounting Type:
PCB Mount
Application:
Flyback
Primary Voltage Rating:
85 → 265V ac
Secondary Voltage Rating:
3.3 → 6.5 V ac, 9 → 16.5 V ac
Length:
49mm
Maximum Operating Frequency:
100kHz
Width:
46mm
Depth:
38mm
Construction:
CEI335, CEI61558, CEI950
Minimum Operating Frequency:
70kHz
Inductance:
440µH
Power Rating:
70 → 120W
Number of Phases:
1
Core Type:
Laminated
RoHs Compliant
Checking for live stock

This is 4 Output 70 → 120W Flyback SMPS Transformer 85 → 265V ac 3.3 → 6.5 V ac 9 → 16.5 V ac manufactured by Myrra. The manufacturer part number is 74060. Additionally, the product is supplied with 4 outputs. The product has +50°c maximum temperature. It has about 3 a, 4 a, 5 a secondary current . The given dimensions of the product include 49 x 46 x 38mm. The product is available in pcb mount configuration. Applications Information involves flyback. It has about 85 → 265v ac primary voltage rating . In addition, it has a secondary 3.3 → 6.5 v ac, 9 → 16.5 v ac voltage rating . Its accurate length is 49mm. It carries 100khz of maximum operating frequency. Furthermore, the product is 46mm wide. The product comes in 38mm depth. The product has been well-designed with cei335, cei61558, cei950 construction. It has a minimum 70khz operating frequency . The product has a 440µh inductance value. Feature 70 → 120w of power rating. Whereas it is comprised of 1 phases. Robust product with a laminated core.

pdf icon
FLYBACK TRANSFORMERS ETD 39(Technical Reference)
