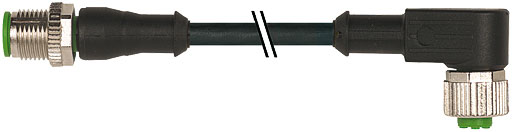

Murrelektronik Limited, 7000 Series, Straight Male M12 to 90° Female M12 Industrial Automation Cable Assembly, 4 Core

7000-40121-6340200 Murrelektronik Limited, 7000 Series, Straight Male M12 to 90° Female M12 Industrial Automation Cable Assembly, 4 Core
Murrelektronik Limited

Product Information

American Wire Gauge:
22 AWG
Current Rating:
4 A
Conductor Resistance:
57 O/km
Oil Resistant:
Yes
Number of Cores:
4
Connector 2 Housing Gender:
Female
Outer Diameter:
4.5mm
Number of Strands:
42
Sheath Material:
PUR
Cable Shape:
Single Core
IP Rating:
IP65, IP66K, IP67
Core Strands:
42 x 0.1 mm
Operating Temperature Range:
-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
Maximum Operating Temperature:
+80 (Fixed, +85 °C, Mobile) °C
Voltage Rating:
30 V ac/dc, 250 V ac/dc
Connector 1 Orientation:
Straight
Minimum Bend Radius:
22.5 (Fixed) mm, 45 (Moving) mm
Fire Behaviour:
Flame Retardant
Connector 1 Gender:
Male
Length:
2m
Connector 2 Orientation:
Right Angle
Connector 2 Gender:
Female
Connector 2 Number of Contacts:
4
Series:
A-Coded
Size of Strands:
0.1 mm
Connector 1 Number of Contacts:
4
Sheath Colour:
Black
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-25 (Mobile) °C, -40 (Fixed) °C
Connector 2:
M12
Connector 1:
M12
Connector 1 Housing Gender:
Male
RoHs Compliant
Checking for live stock

This is 7000 Series Straight Male M12 to 90° Female M12 Industrial Automation Cable Assembly 4 Core manufactured by Murrelektronik Limited. The manufacturer part number is 7000-40121-6340200. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The conductor has 57 o/km resistance. Additionally, it is oil resistant yes . The product consists of 4 cores. Additionally, its connector 2 housing is of female gender . Its outer diameter is 4.5mm. Additionally, it contains 42 strands. The sheath is constructed from durable and adorable pur material. Moreover, this cable has a single core shape. It is IP rated with ip65, ip66k, ip67. The core strands are 42 x 0.1 mm. The product has -25 → +80 (mobile) °c, -25 → +85 °c, -40 → +80 (fixed) °c of operating temperature range. It has a maximum operating temperature of +80 (fixed, +85 °c, mobile) °c. Moreover, the product has a nominal 30 v ac/dc, 250 v ac/dc voltage rating. The connector 1 has a straight orientation. It bears 22.5 (fixed) mm, 45 (moving) mm of minimum bend radius. The product has a flame retardant fire behaviour. This connector 1 is a male. Its accurate length is 2m. In addition, its connector 2 orientation is right angle . Connector 2 is a female connector. On the other hand, the connector 2 has 4 contacts. The product a-coded, is a highly preferred choice for users. The strand size includes 0.1 mm. There are 4 contacts on connector 1. The sheath has an adorable black colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -25 (mobile) °c, -40 (fixed) °c. While the Connector 2 is m12. Connector 1 is m12. On the other hand, the gender of connector 1's housing is male.

pdf icon
7000-40121-6340200 Datasheet(Technical Reference)
