American Wire Gauge:
22 AWG
Current Rating:
4 A
Oil Resistant:
Yes
Outer Diameter:
5.25mm
Standards Met:
cUL, cULus, EAC, UL
Cable Shape:
Multicore
Voltage Rating:
60 V
Shielded/Unshielded:
Shielded
Operating Temperature Range:
-40 → +80 °C
Maximum Operating Temperature:
+80°C
IP Rating:
IP65, IP67
Fire Behaviour:
Fire Resistant, Flame Retardant
Connector 1 Gender:
Female
Length:
1m
Sheath Material:
PVC
Mounting Type:
Panel Mount
Conductor Material:
Copper
Series:
SACCBP-FS-5CON-M16/1.0-PUR SCO
Connector 1 Housing Gender:
Female
Connector 1 Number of Contacts:
5
Coding:
A
Sheath Colour:
Black, Grey
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-40°C
Connector 1:
M12
Insulation Material:
PE (Coaxial), PP (Twisted Pair)
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
3.28' (1.00m)
1st Connector Gender:
Female Sockets
standardLeadTime:
4 Weeks
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
5
Ingress Protection:
IP67 - Dust Tight, Waterproof
Color:
Black
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Panel Mount
ECCN:
EAR99

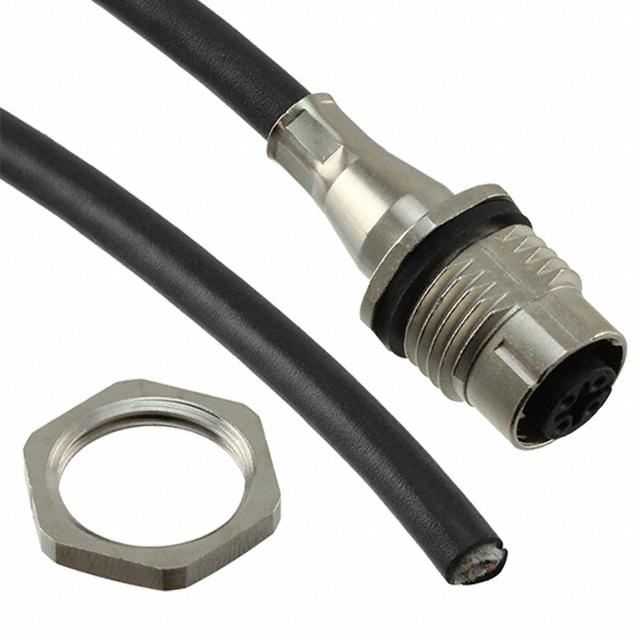

This is manufactured by Phoenix Contact. The manufacturer part number is 1419328. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. Additionally, it is oil resistant yes . Its outer diameter is 5.25mm. The product complies with all safety standards, such as cul, culus, eac, ul. Moreover, this cable has a multicore shape. Moreover, the product has a nominal 60 v voltage rating. Moreover, the product is shielded . The product has -40 → +80 °c of operating temperature range. It has a maximum operating temperature of +80°c. It is IP rated with ip65, ip67. The product has a fire resistant, flame retardant fire behaviour. This connector 1 is a female. Its accurate length is 1m. The sheath is constructed from durable and adorable pvc material. The product is available in panel mount configuration. The conductor is made from copper material. The product saccbp-fs-5con-m16/1.0-pur sco, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. There are 5 contacts on connector 1. The product is coded with a. The sheath has an adorable black, grey colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. Connector 1 is m12. It has a robust pe (coaxial), pp (twisted pair) insulation material. This connector has a a orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 3.28' (1.00m). The first connectors are female sockets. It has a long 4 weeks standard lead time. plug is the first connector. The first connector contains 5 positions. It is IP rated with ip67 - dust tight, waterproof. It has a classic black colour. It is a typical round cable. The first connector is configured with a panel mount mounting type. The product is designated with the ear99 code number.
