Output Current:
12A
Series:
ACST
Maximum IGBT Collector Current:
12A
Automotive Standard:
No
Width:
6.73 mm
Length:
1.78mm

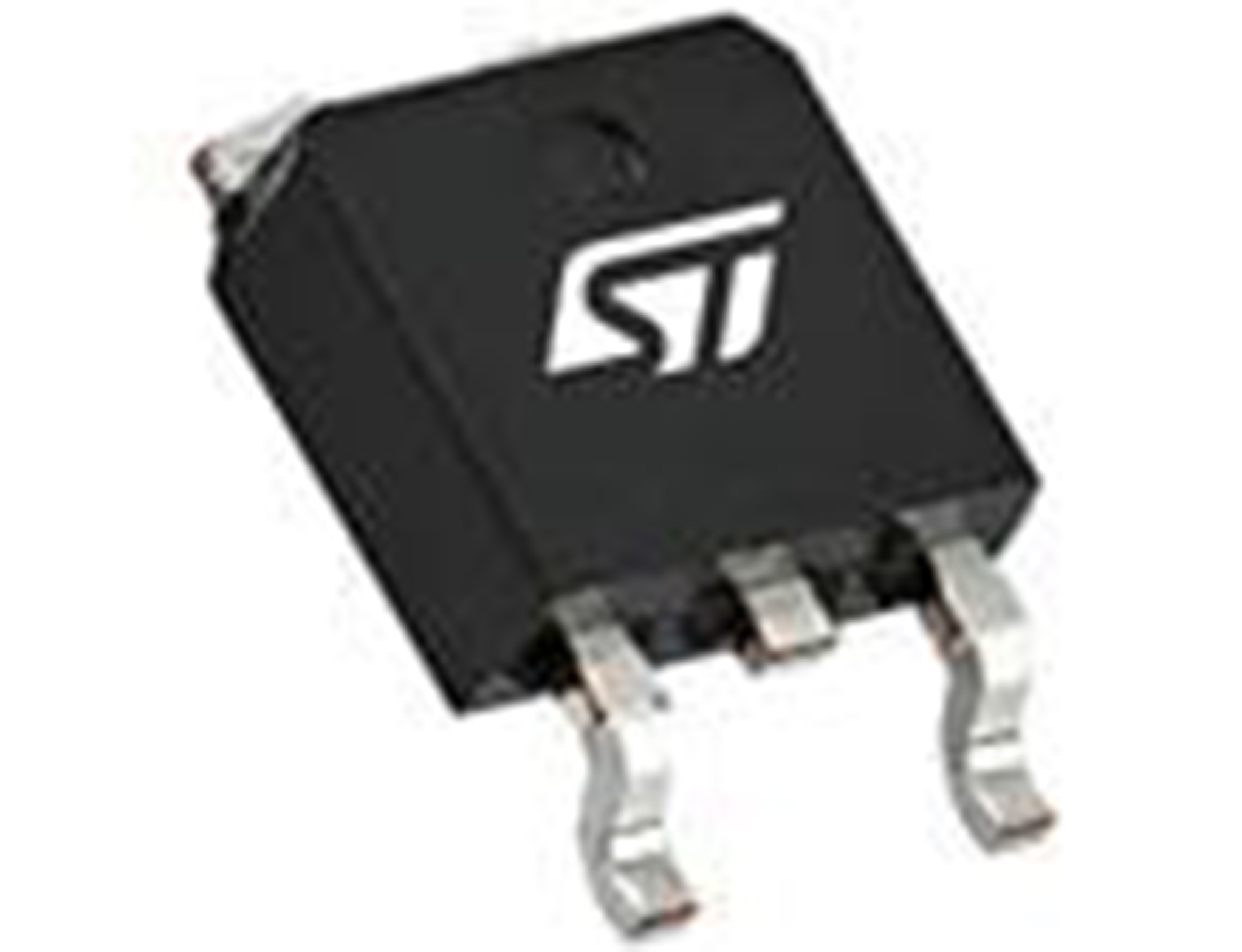

Package Type:
TO-252
Minimum Operating Temperature:
-40°C
Standards/Approvals:
IEC 61000-4-5, IEC 61000-4-4, RoHS (2011/65/EU), UL-94 V0
Maximum Collector Emitter Voltage Vceo:
800V
Product Type:
Motor Driver IC
Maximum Operating Temperature:
150°C
Pin Count:
3
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
800 V
Voltage - Gate Trigger (Vgt) (Max):
1 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
TO-252-3, DPAK (2 Leads + Tab), SC-63
Current - Hold (Ih) (Max):
30 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
12 A
Package:
Tape & Reel (TR)
Current - Off State (Max):
1 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
20 mA
Qualification:
-
standardLeadTime:
99 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
100A, 110A
Voltage - On State (Vtm) (Max):
1.55 V
Mounting Type:
Surface Mount
Grade:
-
Series:
-
Supplier Device Package:
DPAK
SCR Type:
Standard Recovery
