Repetitive Peak Reverse Voltage:
800V
Dimensions:
4.7 x 3.7 x 4.4mm
Mounting Type:
Through Hole
Surge Current Rating:
21A
Repetitive Peak Off-State Current:
100µA
Rated Average On-State Current:
0.8A
Off-State Voltage:
800V
Height:
4.4mm
Width:
3.7mm
Length:
4.7mm
Peak On-State Voltage:
1.6V
Package Type:
TO-92
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
12mA
Maximum Gate Trigger Current:
100µA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
0.8V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
800 V
Voltage - Gate Trigger (Vgt) (Max):
800 mV
Operating Temperature:
-40°C ~ 125°C
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
Current - Hold (Ih) (Max):
12 mA
edacadModel:
TS110-8A1 Models
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
1.25 A
edacadModelUrl:
/en/models/5170897
Package:
Bulk
Current - Off State (Max):
1 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
100 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):
20A, 21A
Voltage - On State (Vtm) (Max):
1.6 V
Mounting Type:
Through Hole
Current - On State (It (AV)) (Max):
800 mA
Series:
-
SCR Type:
Sensitive Gate
Base Product Number:
TS110
ECCN:
EAR99

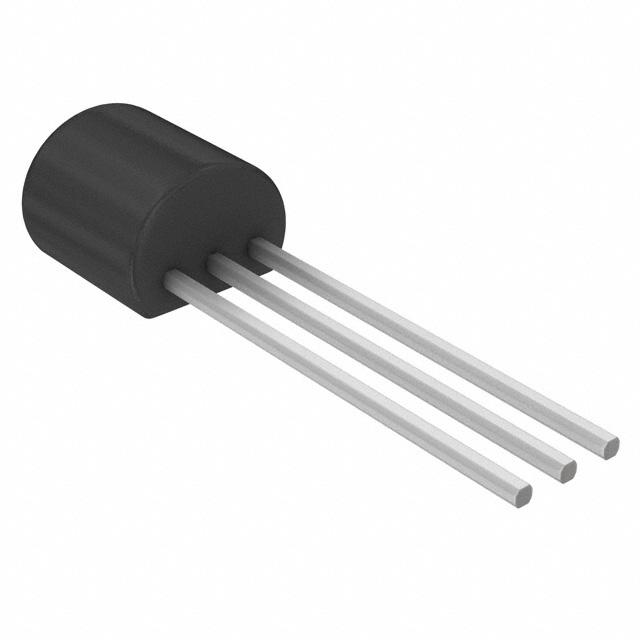

This is Thyristor 800V 0.8A 100μA 3-Pin TO-92 manufactured by STMicroelectronics. The manufacturer part number is TS110-8A1. It has about 800v repetitive reverse voltage . The given dimensions of the product include 4.7 x 3.7 x 4.4mm. The product is available in through hole configuration. It has about 21a surge current rating . Its repetitive peak off-state current is approximately 100µa . Moreover, it has about 0.8a rated average on-state current . Additionally, it has 800v off-state voltage . In addition, the height is 4.4mm. Furthermore, the product is 3.7mm wide. Its accurate length is 4.7mm. It has a peak on-state voltage about 1.6v . The package is a sort of to-92. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 12ma holding current . In addition, the product has a maximum 100µa gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 0.8v gate trigger voltage . It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 800 v. While the maximum voltage - gate trigger includes 800 mv. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in to-226-3, to-92-3 (to-226aa). The maximum hold current is 12 ma. In addition, it is reach unaffected. The maximum 1.25 a of on state current. It is shipped in bulk package . The maximum off state current is 1 µa . Its typical moisture sensitivity level is 1 (unlimited). The maximum gate triggering current is 100 µa. Non rep. current with 50, 60Hz surge included 20a, 21a. The maximum on state voltage includes 1.6 v . Maximum on state current of 800 ma. It is a sensitive gate SCR. Moreover, it corresponds to ts110, a base product number of the product. The product is designated with the ear99 code number.
