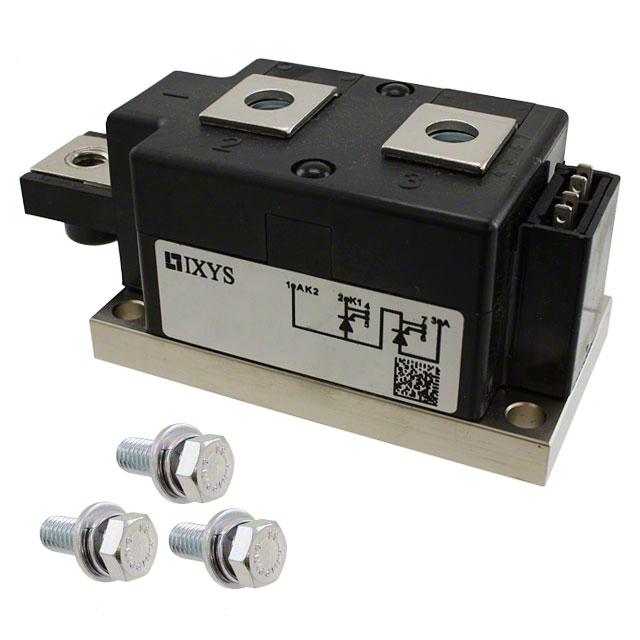

IXYS MCC255-16IO1
Product Information
Repetitive Peak Forward Blocking Voltage:
1600V
Repetitive Peak Reverse Voltage:
1600V
Peak On-State Voltage:
1.36V
Dimensions:
115 x 50 x 49mm
Mounting Type:
Panel Mount
Surge Current Rating:
9.6kA
Rated Average On-State Current:
250A
Repetitive Peak Off-State Current:
40mA
Package Type:
Y1 CU
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
150mA
Maximum Gate Trigger Current:
150mA
Thyristor Type:
SCR Module
Maximum Operating Temperature:
+130 °C
Pin Count:
7
Maximum Gate Trigger Voltage:
2V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
1.6 kV
Voltage - Gate Trigger (Vgt) (Max):
2 V
Operating Temperature:
-40°C ~ 140°C (TJ)
Package / Case:
Y1-CU
Current - Hold (Ih) (Max):
150 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
450 A
Structure:
Series Connection - All SCRs
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
150 mA
standardLeadTime:
20 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
9000A, 9600A
Mounting Type:
Chassis Mount
Current - On State (It (AV)) (Max):
250 A
Series:
-
Number of SCRs, Diodes:
2 SCRs
Base Product Number:
MCC255
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MCC255-16IO1 on website for other similar products.
We accept all major payment methods for all products including ET11923006. Please check your shopping cart at the time of order.
You can order IXYS brand products with MCC255-16IO1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in SCRs - Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IXYS MCC255-16IO1. You can also check on our website or by contacting our customer support team for further order details on IXYS MCC255-16IO1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11923006 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IXYS" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11923006.
Yes. We ship MCC255-16IO1 Internationally to many countries around the world.
This is manufactured by IXYS. The manufacturer part number is MCC255-16IO1. Moreover, it has a repetitive peak forward blocking voltage about 1600v . It has about 1600v repetitive reverse voltage . It has a peak on-state voltage about 1.36v . The given dimensions of the product include 115 x 50 x 49mm. The product is available in panel mount configuration. It has about 9.6ka surge current rating . Moreover, it has about 250a rated average on-state current . Its repetitive peak off-state current is approximately 40ma . The package is a sort of y1 cu. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 150ma holding current . In addition, the product has a maximum 150ma gate trigger current . In addition, the product has a/an scr module type thyristor . It has a maximum operating temperature of +130 °c. It contains 7 pins. Moreover, it has a maximum 2v gate trigger voltage . It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs3 compliant. It has an off state voltage of 1.6 kv. While the maximum voltage - gate trigger includes 2 v. The product has -40°c ~ 140°c (tj) operating temperature range. Moreover, the product comes in y1-cu. The maximum hold current is 150 ma. In addition, it is reach unaffected. The maximum 450 a of on state current. It has a series connection - all scrs structure. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The maximum gate triggering current is 150 ma. It has a long 20 weeks standard lead time. Non rep. current with 50, 60Hz surge included 9000a, 9600a. The product is available in chassis mount configuration. Maximum on state current of 250 a. It consists of 2 scrs . Moreover, it corresponds to mcc255, a base product number of the product. The product is designated with the ear99 code number.
