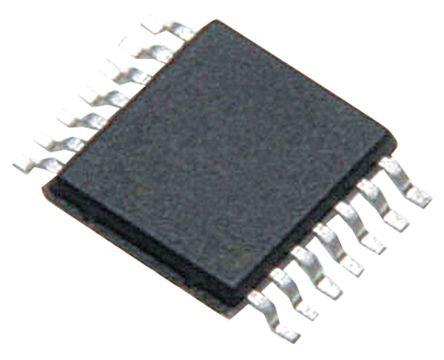

This is Dual Schmitt Trigger Inverter 1.2 → 3.6 V 14-Pin TSSOP manufactured by NXP. The manufacturer part number is 74LVC14APW,118. It has 3.6 v maximum operating supply voltage. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. It provides up to 14.7 ns @ 1.95 v maximum propagation delay time. While its minimum operating supply voltage is 1.2 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter schmitt trigger. Furthermore, it has attl output. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. The logic family is 74lvc. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 14 pins. It consists of 2 elements per chip.
Datasheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
