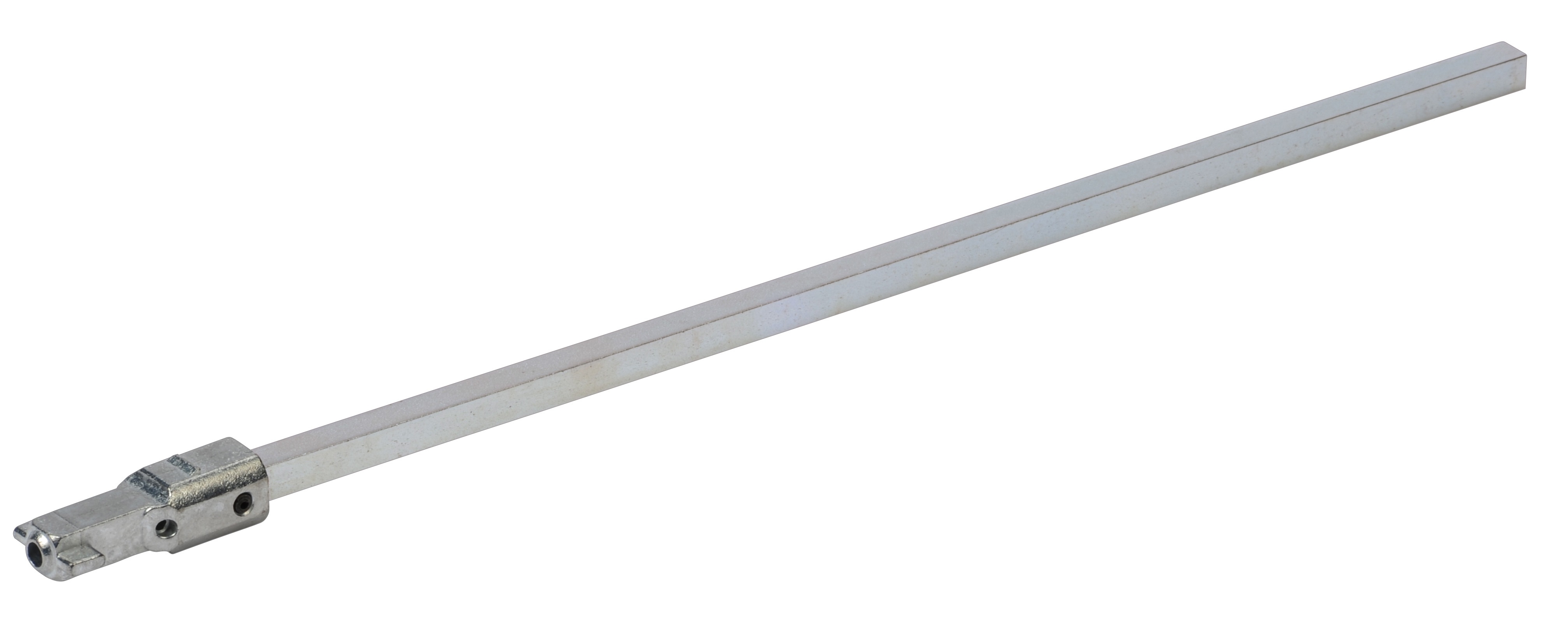

Socomec 14001040, Shaft for External Handle for use with S2 and S2L Type Handle

The Socomec 14001040 is a precision-engineered mechanical extension shaft designed for use with S-type external actuating handles (S1, S2 and S2L) on Socomec disconnect switch assemblies. With a robust 10 × 10 mm square section and a 400 mm length, this accessory enables reliable remote operation when the handle needs to be extended or repositioned outside the enclosure. Its compatibility with frame sizes B3-B5, B4ds, B4T, F2-F3 and 11-16 ensures flexible integration across a broad range of switchgear applications.

What Sets the Socomec Shaft for External Handle Apart?

• 400 mm length provides ample extension for remote handle placement.
• Square 10 × 10 mm section guarantees secure coupling and torque transmission.
• Compatible with S-type handles (S1, S2, S2L), offering broad application coverage.
• Compatible with both fusible and non-fusible disconnect switch models for flexible use.

Engineered for Robust Remote Operation

This extension shaft is designed to maintain mechanical integrity and operational reliability over extended use in industrial environments. The square section ensures minimal play and consistent actuation force, while the 400 mm length allows the handle to be placed outside enclosures or behind panels where direct access is limited.

Product Usage Scenarios

• Remote operating handle extension for Socomec manual disconnect switches.
• Panel-mounted or door-mounted handle setups where the switch is behind an enclosure door.
• Control cubicles or electrical panels requiring externally mounted handle operation.
• Applications in machine tools, industrial control systems, and distribution boards.
• OEM equipment where standardisation of accessory parts is important.

For more information please check the datasheets.
