Dimensions:
5 x 5 x 0.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Operating Supply Voltage:
1.8 V
Maximum Operating Band 1 Frequency:
1050MHz
Height:
0.85mm
Modulation Technique:
AFSK, ASK, FM, FSK, GFSK, GMSK, MSK, PSK, QFSK
Width:
5mm
Length:
5mm
Package Type:
QFN
Minimum Operating Temperature:
-40 °C
Data Rate:
125kbps
Maximum Operating Supply Voltage:
3.6 V
Number of Operating Bands:
1
Minimum Operating Band 1 Frequency:
27MHz
Technology:
Low IF/ISM Transceiver
Pin Count:
28
Current - Transmitting:
7.5mA ~ 48mA
Base Part Number:
AX5043
Data Rate (Max):
125kbps
Current - Receiving:
6.5mA ~ 11mA
Mounting Type:
Surface Mount
Modulation:
4FSK, ASK, AFSK, FSK, GFSK, GMSK, MSK, PSK
Sensitivity:
-137dBm
Operating Temperature:
-40°C ~ 85°C
Serial Interfaces:
SPI, UART
Supplier Device Package:
28-QFN (5x5)
Packaging:
Cut Tape (CT)
RF Family/Standard:
General ISM < 1GHz
Frequency:
27MHz ~ 1.05GHz
Voltage - Supply:
1.8V ~ 3.6V
Customer Reference:
Package / Case:
28-VFQFN Exposed Pad
Detailed Description:
IC RF TxRx Only General ISM < 1GHz 27MHz ~ 1.05GHz 28-VFQFN Exposed Pad
Power - Output:
16dBm (Max)
Type:
TxRx Only
Manufacturer:
ON Semiconductor

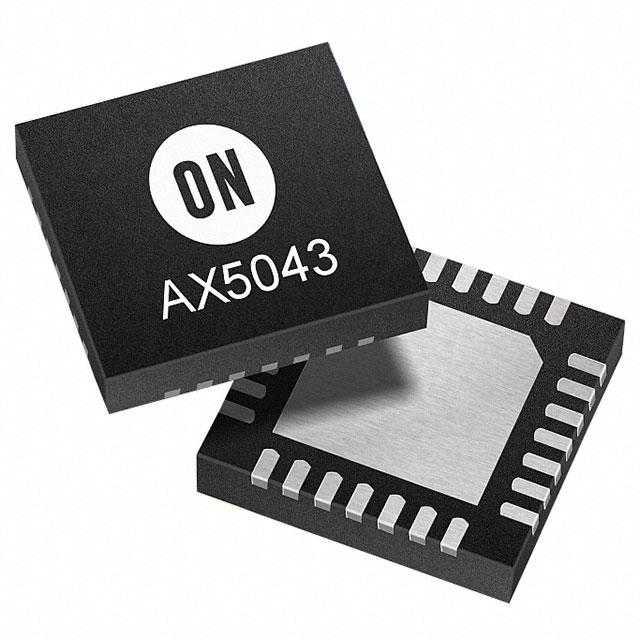

This is manufactured by ON Semiconductor. The manufacturer part number is AX5043-1-TA05. The given dimensions of the product include 5 x 5 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. While its minimum operating supply voltage is 1.8 v. It has a maximum 1050mhz operating band 1 frequency . In addition, the height is 0.85mm. It is created with afsk, ask, fm, fsk, gfsk, gmsk, msk, psk, qfsk modulation technique . Furthermore, the product is 5mm wide. Its accurate length is 5mm. The package is a sort of qfn. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximised data speed rate of 125kbps. It has 3.6 v maximum operating supply voltage. It has 1 operating bands . Moreover, it has a minimum 27mhz operating band 1 frequency . This product use low if/ism transceiver technology. It contains 28 pins. It carries 7.5ma ~ 48ma transmission current. Base Part Number: ax5043. Robust and maximum data rate speed of 125kbps. The current receiving of the product is 6.5ma ~ 11ma. Features 4fsk, ask, afsk, fsk, gfsk, gmsk, msk, psk modulation. The sensitivity given includes -137dbm. The product has -40°c ~ 85°c operating temperature range. It features spi, uart serial interface. 28-qfn (5x5) is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The standard RF Family of the product includes general ism < 1ghz. Supplied with 27mhz ~ 1.05ghz of frequency. It has optimum voltage supply of 1.8v ~ 3.6v. Moreover, the product comes in 28-vfqfn exposed pad. It features ic rf txrx only general ism < 1ghz 27mhz ~ 1.05ghz 28-vfqfn exposed pad. The product has an output power 16dbm (max). It comes in txrx only configuration. The on semiconductor's product offers user-desired applications.
