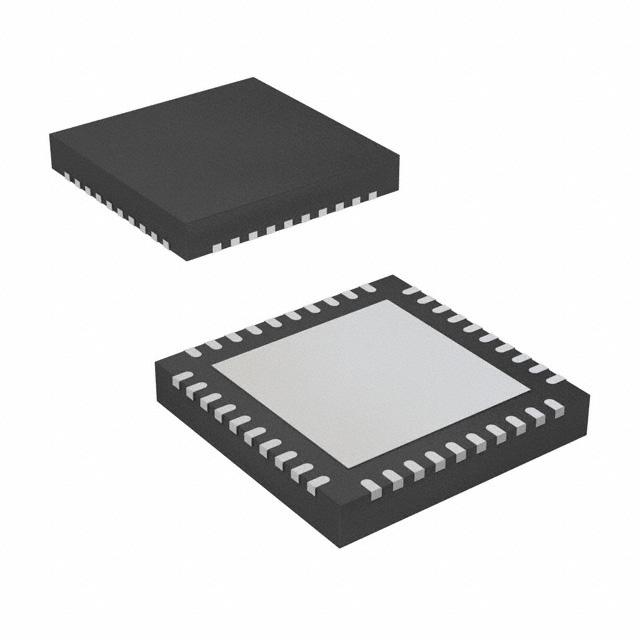

Analog Devices Inc. ADF7030-1BCPZN
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
DigiKey Programmable:
Not Verified
Supplier Device Package:
40-LFCSP (6x6)
Operating Temperature:
-40°C ~ 85°C
Memory Size:
-
Package / Case:
40-WFQFN Exposed Pad, CSP
GPIO:
8
Type:
TxRx + MCU
Current - Transmitting:
65mA
Current - Receiving:
25mA
Modulation:
2FSK, 2GFSK, 4FSK, 4GFSK
REACH Status:
REACH Unaffected
edacadModel:
ADF7030-1BCPZN Models
edacadModelUrl:
/en/models/6163961
Package:
Tray
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
802.15.4
standardLeadTime:
7 Weeks
Data Rate (Max):
360kbps
Protocol:
-
Mounting Type:
Surface Mount
Series:
-
Sensitivity:
-134dBm
Serial Interfaces:
SPI
Frequency:
169MHz, 426MHz ~ 470MHz, 863MHz ~ 960MHz
Voltage - Supply:
2.2V ~ 3.6V
Power - Output:
17dBm
Base Product Number:
ADF7030
ECCN:
5A992C
Checking for live stock
FAQs
Yes. You can also search ADF7030-1BCPZN on website for other similar products.
We accept all major payment methods for all products including ET11065187. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with ADF7030-1BCPZN directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Transceiver ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. ADF7030-1BCPZN. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. ADF7030-1BCPZN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11065187 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11065187.
Yes. We ship ADF7030-1BCPZN Internationally to many countries around the world.
This is manufactured by Analog Devices Inc.. The manufacturer part number is ADF7030-1BCPZN. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 40-lfcsp (6x6) is the supplier device package value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 40-wfqfn exposed pad, csp. It consists of 8 GPIO. It comes in txrx + mcu configuration. It carries 65ma transmission current. The current receiving of the product is 25ma. Features 2fsk, 2gfsk, 4fsk, 4gfsk modulation. In addition, it is reach unaffected. It is shipped in tray package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes 802.15.4. It has a long 7 weeks standard lead time. Robust and maximum data rate speed of 360kbps. The product is available in surface mount configuration. The sensitivity given includes -134dbm. It features spi serial interface. Supplied with 169mhz, 426mhz ~ 470mhz, 863mhz ~ 960mhz of frequency. It has optimum voltage supply of 2.2v ~ 3.6v. The product has an output power 17dbm. Moreover, it corresponds to adf7030, a base product number of the product. The product is designated with the 5a992c code number.
