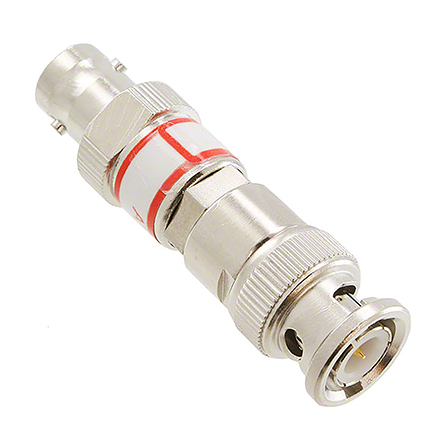

50Ω RF Attenuator Straight BNC Connector BNC Plug to BNC Socket 20dB, Operating Frequency 0 → 2GHz

Enrgtech Part No: ET24732835
|
Manufacturer Part No:
27-9300-20
|
Manufacturer: Cinch

27-9300-20 50Ω RF Attenuator Straight BNC Connector BNC Plug to BNC Socket 20dB, Operating Frequency 0 → 2GHz

Product Information

Attenuation:

20dB

Body Plating:

Nickel

Body Orientation:

Straight

Gender B:

Socket

Gender A:

Plug

Connector Type:

BNC

Interface Type:

BNC Plug to BNC Socket

Contact Plating:

Gold

Operating Frequency:

0 → 2GHz

Impedance:

50Ω

Contact Material:

Brass

Checking for live stock

The Cinch 27-9300-20 is a precision-engineered 20 dB RF attenuator pad, optimised for reliable performance in a compact, rugged form factor. Designed for signal integrity and equipment protection, this attenuator is a smart choice for professional laboratories, test setups, broadcast, and telecom applications.

Crucial Features of the Product

Attenuation: 20 dB nominal
Impedance: 50 Ω
Power Rating: 0.5 W (500 mW) continuous
Frequency Range: DC to 2 GHz (0 Hz–2 GHz)
Connector Type: BNC plug to BNC socket
Materials & Finish: Brass body, nickel plating; gold-plated contacts; Delrin insulator
Compliance: RoHS-compliant, with lead presence noted in SVHC disclosures

Notable Advantages to Users

Delivers a stable 20 dB attenuation for signal conditioning, preventing overload or equipment damage, while preserving impedance matching.
The compact, in-line BNC configuration offers quick insertion into existing RF chains, making it ideal for test benches, broadcast infrastructure, or lab environments.
A broad DC–2 GHz bandwidth suits a wide range of RF applications, including telecommunications, instrumentation, and signal generation systems.
Robust brass body and gold-plated contacts enhance durability, conductivity, and corrosion resistance, critical for repeat mating cycles.

Application Potential of the RF Attenuator Straight BNC Connector

Excellent for calibration routines, test fixture protection, RF instrumentation, antenna drive attenuation and meet-overload shielding needs in both field and lab settings.

Why Buy It?

Compared to generic attenuator pads, the Cinch 27-9300-20 pairs high-quality materials with precise specifications in a cost-effective, compact package. Its 50 Ω matching and 20 dB rating make it a versatile component for any RF engineer or procurement team focused on consistency and signal fidelity.
