Frequency Range:
791MHz ~ 928MHz, 1.559GHz ~ 1.61GHz, 1.85GHz ~ 2.62GHz
HTSUS:
8529.10.9100
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Height (Max):
0.039" (1.00mm)
Applications:
3G (UMTS), GNSS, IoT, ISM, LP-WAN, RFID
Gain:
1.2dBi, 1.4dBi, 1.1dBi
Number of Bands:
3
Package:
Bulk
RF Family/Standard:
802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
859.5MHz, 1.5845GHz, 2.24GHz
Termination:
U.FL (UMCC), IPEX MHF1
Ingress Protection:
-
Features:
Cable - 180mm
Mounting Type:
Adhesive, Bracket
Antenna Type:
PCB Trace
Series:
AN150201
Power - Max:
10 W
VSWR:
2.32, 3.01, 3.57
Return Loss:
-6dB, -8dB, -5dB
ECCN:
EAR99

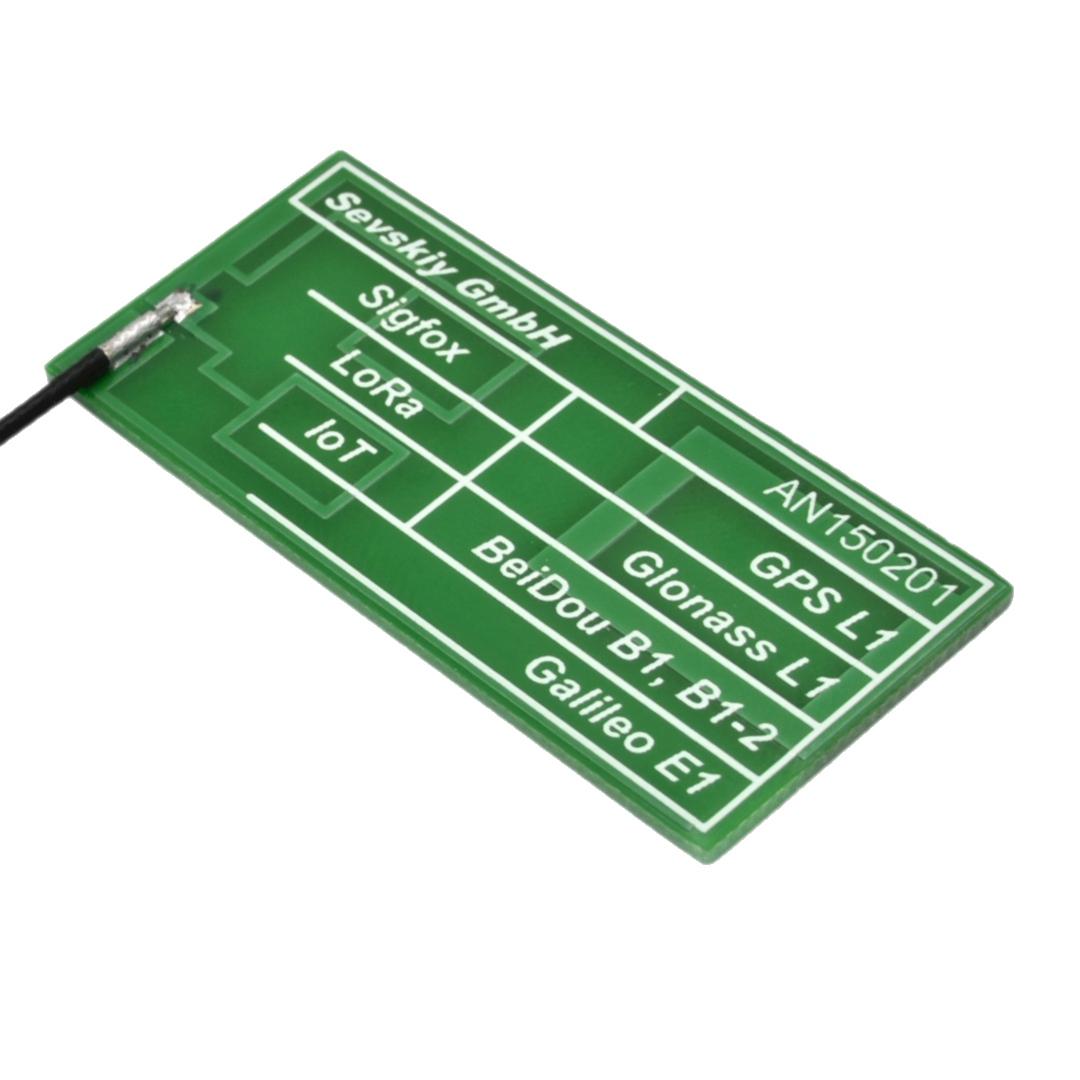

This is manufactured by Sevskiy GmbH. The manufacturer part number is AN150201-01C-180-MHF1. The frequency range includes 791mhz ~ 928mhz, 1.559ghz ~ 1.61ghz, 1.85ghz ~ 2.62ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product boasts a uhf (300mhz ~ 1ghz), uhf (1ghz ~ 2ghz), uhf (2ghz ~ 3ghz) frequency group. Additionally, the 0.039" (1.00mm) is the maximum height of the product. The product is widely employed in 3g (umts), gnss, iot, ism, lp-wan, rfid. The 1.2dbi, 1.4dbi, 1.1dbi is the gain value of a bespoke product. It contains 3 bands. It is shipped in bulk package . The standard RF Family of the product includes 802.15.4, bluetooth, cellular, general ism, navigation, wifi. While it has a frequency of 859.5mhz, 1.5845ghz, 2.24ghz at center/band. The product features u.fl (umcc), ipex mhf1 termination style. The splendid features of the product include cable - 180mm. The product is available in adhesive, bracket configuration. It is a pcb trace antenna. The product an150201, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 2.32, 3.01, 3.57. It has a return loss of -6db, -8db, -5db. The product is designated with the ear99 code number.
