Frequency Range:
698MHz, 1.427GHz, 1.695GHz, 3.3GHz, 4.4GHz, 6GHz, 6.5GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.799" (96.50mm)
REACH Status:
REACH Unaffected
Applications:
5G
Gain:
0.4dBi, 1.1dBi, 2.7dBi, 5.7dBi, 6.6dBi, 7.4dBi, 8.1dBi
Number of Bands:
7
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.25GHz, 6.5125GHz
Termination:
N Type Female
standardLeadTime:
53 Weeks
Ingress Protection:
IP67
Features:
-
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
-
VSWR:
2, 2.5, 3.5
Return Loss:
-
Base Product Number:
FTRA6971
ECCN:
EAR99

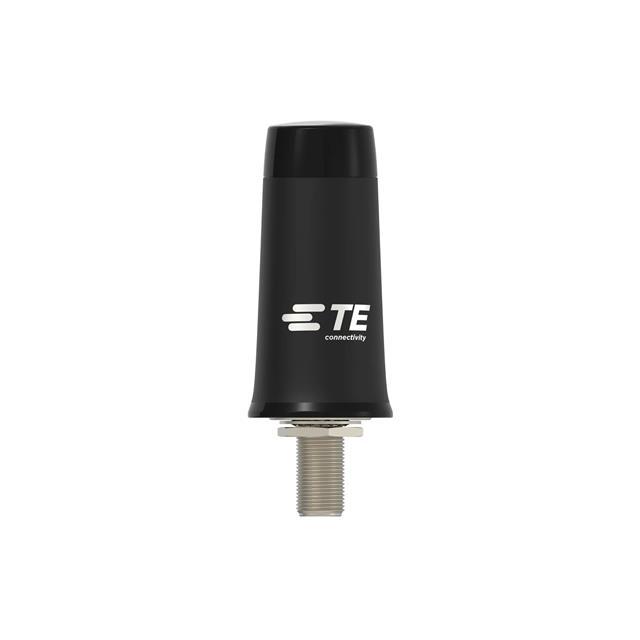

This is manufactured by TE Connectivity Laird. The manufacturer part number is FTRA6971M6PBN-001. The frequency range includes 698mhz, 1.427ghz, 1.695ghz, 3.3ghz, 4.4ghz, 6ghz, 6.5ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.799" (96.50mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 5g. The 0.4dbi, 1.1dbi, 2.7dbi, 5.7dbi, 6.6dbi, 7.4dbi, 8.1dbi is the gain value of a bespoke product. It contains 7 bands. It is shipped in box package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.561ghz, 2.1975ghz, 3.75ghz, 5.2ghz, 6.25ghz, 6.5125ghz at center/band. The product features n type female termination style. It has a long 53 weeks standard lead time. It is IP rated with ip67. The product is available in panel mount configuration. It is a dome antenna. VSWR Information: 2, 2.5, 3.5. Moreover, it corresponds to ftra6971, a base product number of the product. The product is designated with the ear99 code number.
