Frequency Range:
617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz
HTSUS:
8529.10.9100
Frequency Group:
Wide Band
Height (Max):
3.012" (76.50mm)
Applications:
802.11ax, 4G, 5G, GNSS, LTE, Wi-Fi
Gain:
-0.2dBi, 1.1dBi, 0dBi, 3dBi, 2.1dBi, 4.4dBi, 1.7dBi, 4.8dBi, 9.1dBi, 4.7dBi, 11.4dBi, 5.8dBi
Number of Bands:
12
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz
Termination:
Fakra
standardLeadTime:
14 Weeks
Ingress Protection:
IP67
Features:
Cable - 5.18m
Mounting Type:
Surface Mount
Antenna Type:
Module
Series:
-
Power - Max:
50 W
VSWR:
2
Return Loss:
-
ECCN:
7A994

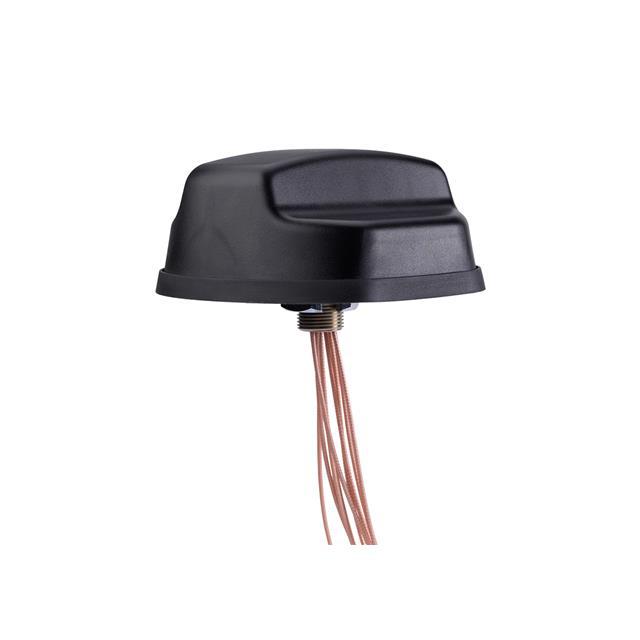

This is manufactured by PCTEL, Inc.. The manufacturer part number is COACH2-9X1-17FT-FAKRA. The frequency range includes 617mhz ~ 698mhz, 698mhz ~ 802mhz, 733mhz ~ 802mhz, 824mhz ~ 960mhz, 1.565ghz ~ 1.608ghz, 1.71ghz ~ 2.2ghz, 1.805ghz ~ 2.2ghz, 2.3ghz ~ 2.5ghz, 2.4ghz ~ 2.69ghz, 3.4ghz ~ 3.8ghz, 4.9ghz ~ 5.9ghz, 5.15ghz ~ 5.95ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product boasts a wide band frequency group. Additionally, the 3.012" (76.50mm) is the maximum height of the product. The product is widely employed in 802.11ax, 4g, 5g, gnss, lte, wi-fi. The -0.2dbi, 1.1dbi, 0dbi, 3dbi, 2.1dbi, 4.4dbi, 1.7dbi, 4.8dbi, 9.1dbi, 4.7dbi, 11.4dbi, 5.8dbi is the gain value of a bespoke product. It contains 12 bands. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 657.5mhz, 750mhz, 767.5mhz, 892mhz, 1.586ghz, 1.955ghz, 2.002ghz, 2.45ghz, 2.495ghz, 3.6ghz, 5.4ghz, 5.55ghz at center/band. The product features fakra termination style. It has a long 14 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5.18m. The product is available in surface mount configuration. It is a module antenna. The maximum power of the product is 50 w. VSWR Information: 2. The product is designated with the 7a994 code number.
