Frequency Range:
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.5GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
0.005" (0.13mm)
Applications:
2G, 3G, 4G, 5G, LPWA
Gain:
2.3dBi, 3.4dBi, 3.4dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.5dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.65GHz, 3.75GHz, 4.5GHz, 5.5GHz
Termination:
IPEX MHF4
Ingress Protection:
-
Features:
-
Mounting Type:
Adhesive
Antenna Type:
Flat Patch
Series:
-
VSWR:
3
Return Loss:
-
ECCN:
EAR99

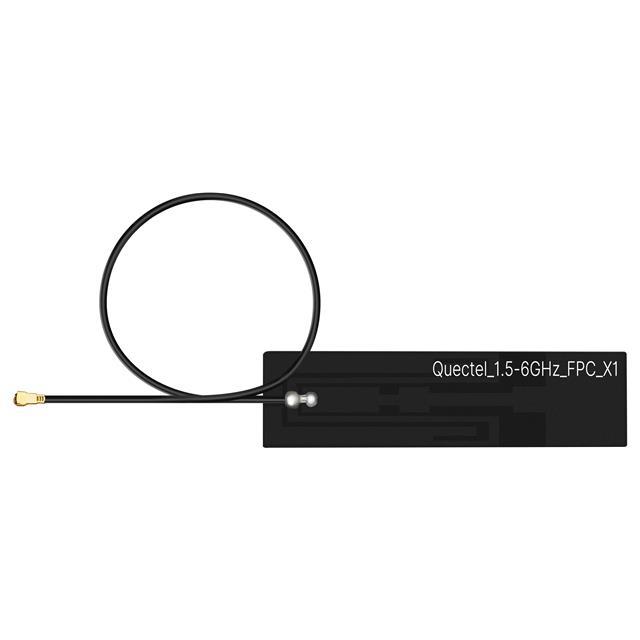

This is manufactured by Quectel. The manufacturer part number is YF0017AA. The frequency range includes 698mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.61ghz, 1.5ghz ~ 2.17ghz, 1.71ghz ~ 2.69ghz, 2.17ghz ~ 4ghz, 3.3ghz ~ 5ghz, 4ghz ~ 6ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 0.005" (0.13mm) is the maximum height of the product. The product is widely employed in 2g, 3g, 4g, 5g, lpwa. The 2.3dbi, 3.4dbi, 3.4dbi, 4.5dbi, 4.5dbi, 4.5dbi, 3.5dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 2.43ghz, 3.65ghz, 3.75ghz, 4.5ghz, 5.5ghz at center/band. The product features ipex mhf4 termination style. The product is available in adhesive configuration. It is a flat patch antenna. VSWR Information: 3. The product is designated with the ear99 code number.
