Frequency Range:
698MHz ~ 960MHz, 699MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
7.480" (190.00mm)
Applications:
LTE
Gain:
-0.9dBi, 3.4dBi, 2.76dBi, 3.5dBi, 3.25dBi, 3.14dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 2.84GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
SMA Male
standardLeadTime:
6 Weeks
Ingress Protection:
IP55
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Right Angle
Series:
-
VSWR:
4
Return Loss:
-
ECCN:
EAR99

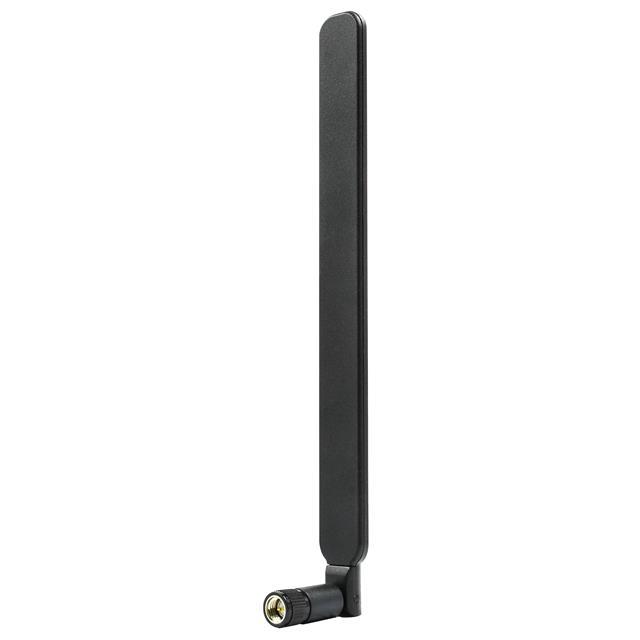

This is manufactured by Quectel. The manufacturer part number is YE0003AA. The frequency range includes 698mhz ~ 960mhz, 699mhz ~ 1.28ghz, 1.176ghz ~ 1.61ghz, 1.4ghz ~ 2.17ghz, 1.71ghz ~ 2.69ghz, 2.17ghz ~ 4ghz, 3.3ghz ~ 5ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 7.480" (190.00mm) is the maximum height of the product. The product is widely employed in lte. The -0.9dbi, 3.4dbi, 2.76dbi, 3.5dbi, 3.25dbi, 3.14dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 2.43ghz, 2.84ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features sma male termination style. It has a long 6 weeks standard lead time. It is IP rated with ip55. The product is available in connector mount configuration. It is a whip, right angle antenna. VSWR Information: 4. The product is designated with the ear99 code number.
