Frequency Range:
698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
5.669" (144.00mm)
Applications:
GNSS, LTE
Gain:
-0.7dBi, -0.03dBi, 2.71dBi, 1.66dBi, 2.71dBi, 2.71dBi
Number of Bands:
10
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, Navigation
Frequency (Center/Band):
829MHz, 830MHz, 1.228GHz, 1.585GHz, 1.94GHz, 2.205GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
SMA Male
standardLeadTime:
6 Weeks
Ingress Protection:
IP67
Features:
-
Mounting Type:
Connector Mount
Antenna Type:
Whip, Straight
Series:
-
VSWR:
3.1
Return Loss:
-
ECCN:
EAR99

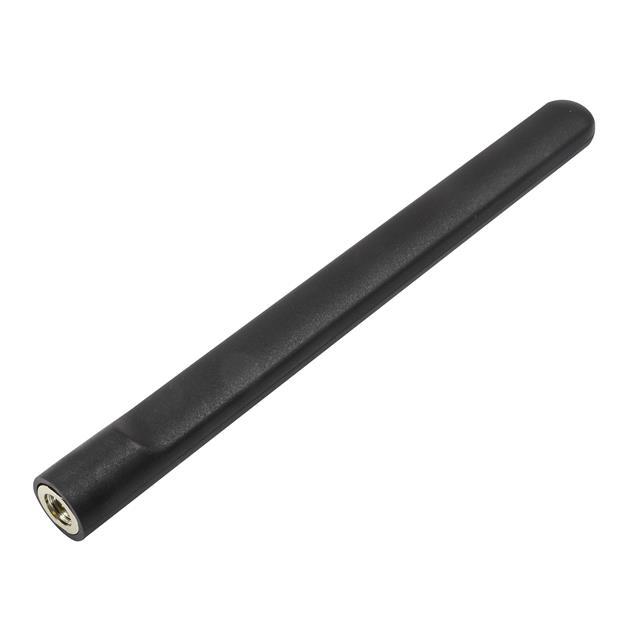

This is manufactured by Quectel. The manufacturer part number is YCN001AA. The frequency range includes 698mhz ~ 960mhz, 700mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.56ghz ~ 1.61ghz, 1.71ghz ~ 1.71ghz, 1.71ghz ~ 2.17ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 5.669" (144.00mm) is the maximum height of the product. The product is widely employed in gnss, lte. The -0.7dbi, -0.03dbi, 2.71dbi, 1.66dbi, 2.71dbi, 2.71dbi is the gain value of a bespoke product. It contains 10 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, navigation. While it has a frequency of 829mhz, 830mhz, 1.228ghz, 1.585ghz, 1.94ghz, 2.205ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features sma male termination style. It has a long 6 weeks standard lead time. It is IP rated with ip67. The product is available in connector mount configuration. It is a whip, straight antenna. VSWR Information: 3.1. The product is designated with the ear99 code number.
