Frequency Range:
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
HTSUS:
8517.71.0000
Frequency Group:
Wide Band
Height (Max):
0.610" (15.50mm)
Applications:
LTE
Gain:
3.3dBi, 1.44dBi, 3.3dBi, 0.35dBi
Number of Bands:
9
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular
Frequency (Center/Band):
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
Termination:
SMA Male
standardLeadTime:
6 Weeks
Ingress Protection:
IP66
Features:
-
Mounting Type:
Magnetic
Antenna Type:
Module
Series:
-
VSWR:
3.3
Return Loss:
-
ECCN:
EAR99

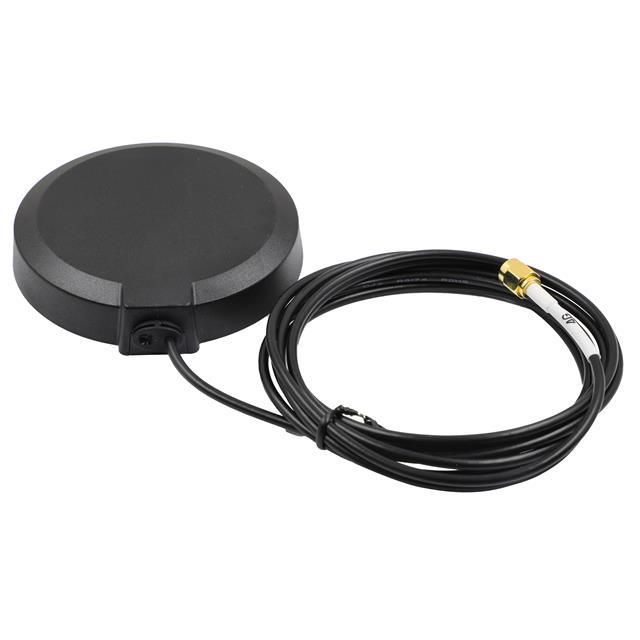

This is manufactured by Quectel. The manufacturer part number is YB0010AA. The frequency range includes 698mhz ~ 960mhz, 1.176ghz ~ 1.28ghz, 1.4ghz ~ 1.61ghz, 1.71ghz ~ 2.17ghz, 1.71ghz ~ 2.69ghz, 2.17ghz ~ 2.69ghz, 3.3ghz ~ 4ghz, 4ghz ~ 5ghz, 5ghz ~ 6ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product boasts a wide band frequency group. Additionally, the 0.610" (15.50mm) is the maximum height of the product. The product is widely employed in lte. The 3.3dbi, 1.44dbi, 3.3dbi, 0.35dbi is the gain value of a bespoke product. It contains 9 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular. While it has a frequency of 829mhz, 1.228ghz, 1.505ghz, 1.94ghz, 2.2ghz, 2.43ghz, 3.65ghz, 4.5ghz, 5.5ghz at center/band. The product features sma male termination style. It has a long 6 weeks standard lead time. It is IP rated with ip66. The product is available in magnetic configuration. It is a module antenna. VSWR Information: 3.3. The product is designated with the ear99 code number.
