Frequency Range:
617MHz ~ 960MHz, 1.2266GHz ~ 1.2286GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 4.9GHz ~ 7.125GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
2.441" (62.00mm)
REACH Status:
REACH Unaffected
Applications:
5G, GNSS, LTE, Wi-Fi
Gain:
2.3dBi, 4.6dBi, 6dBi, 4.9dBi, 5.7dBi, 5.4dBi, 4.7dBi
Number of Bands:
11
Package:
Bag
Moisture Sensitivity Level (MSL):
Not Applicable
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
788.5MHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.0125GHz
Termination:
RP-SMA Male (1), SMA Male (2)
standardLeadTime:
17 Weeks
Ingress Protection:
IP67
Features:
Cable - 5.18m, LNA
Mounting Type:
Direct Mount
Antenna Type:
Module
Series:
-
Power - Max:
45 W
VSWR:
2
Return Loss:
-
ECCN:
EAR99

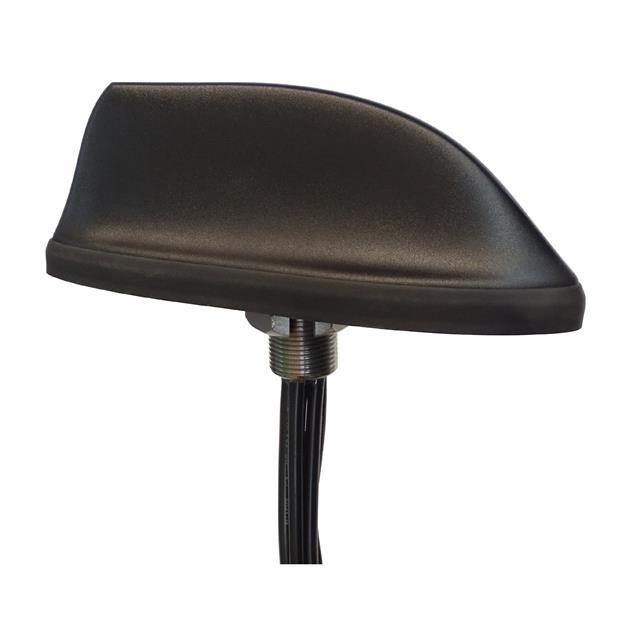

This is manufactured by Pulse Electronics. The manufacturer part number is SKF5G62311DM. The frequency range includes 617mhz ~ 960mhz, 1.2266ghz ~ 1.2286ghz, 1.559ghz ~ 1.563ghz, 1.574ghz ~ 1.576ghz, 1.598ghz ~ 1.606ghz, 1.71ghz ~ 2.7ghz, 2.4ghz ~ 2.5ghz, 3.3ghz ~ 4.2ghz, 4.4ghz ~ 5ghz, 5.15ghz ~ 5.925ghz, 4.9ghz ~ 7.125ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 2.441" (62.00mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 5g, gnss, lte, wi-fi. The 2.3dbi, 4.6dbi, 6dbi, 4.9dbi, 5.7dbi, 5.4dbi, 4.7dbi is the gain value of a bespoke product. It contains 11 bands. It is shipped in bag package . Its typical moisture sensitivity level is not applicable. The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 788.5mhz, 1.2276ghz, 1.561ghz, 1.575ghz, 1.602ghz, 2.205ghz, 2.45ghz, 3.75ghz, 4.7ghz, 5.5375ghz, 6.0125ghz at center/band. The product features rp-sma male (1), sma male (2) termination style. It has a long 17 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5.18m, lna. The product is available in direct mount configuration. It is a module antenna. The maximum power of the product is 45 w. VSWR Information: 2. The product is designated with the ear99 code number.
