Frequency Range:
698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz
HTSUS:
8529.10.9100
RoHS Status:
RoHS Compliant
Frequency Group:
Wide Band
Height (Max):
0.008" (0.20mm)
REACH Status:
REACH Unaffected
Applications:
2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™
Gain:
1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi
Number of Bands:
5
Package:
Bag
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band):
829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz
Termination:
MMCX
standardLeadTime:
11 Weeks
Ingress Protection:
-
Features:
Cable - 193mm
Mounting Type:
Adhesive
Antenna Type:
PCB Trace
Series:
-
Power - Max:
5 W
VSWR:
-
Return Loss:
-4dB, -3dB, -6dB, -5dB, -4dB
ECCN:
7A994

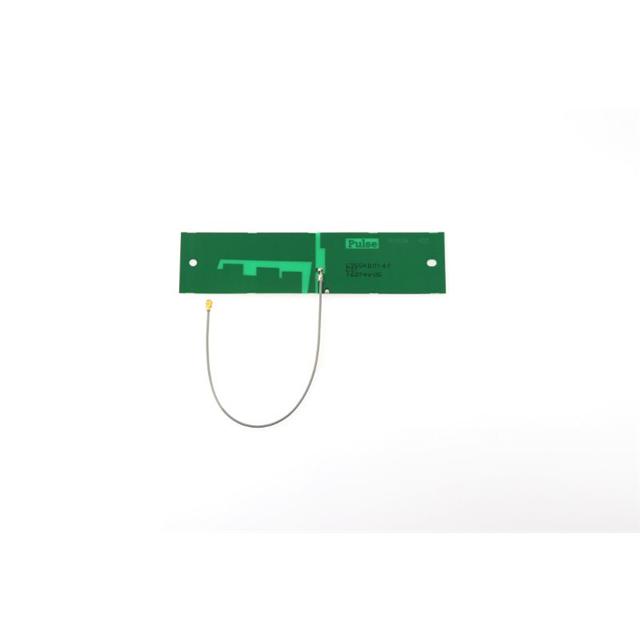

This is manufactured by Pulse Electronics. The manufacturer part number is W3554E0193. The frequency range includes 698mhz ~ 960mhz, 1.4ghz ~ 1.6ghz, 1.71ghz ~ 2.69ghz, 3.3ghz ~ 3.8ghz, 4.9ghz ~ 6ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs compliant. The product boasts a wide band frequency group. Additionally, the 0.008" (0.20mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 2g, 3g, 4g, 5g, bluetooth, gnss, ism, wi-fi, zigbee™. The 1.9dbi, 2.5dbi, 3.2dbi, 3.3dbi, 3.5dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in bag package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes 802.15.4, bluetooth, cellular, general ism, navigation, wifi. While it has a frequency of 829mhz, 1.5ghz, 2.2ghz, 3.55ghz, 5.45ghz at center/band. The product features mmcx termination style. It has a long 11 weeks standard lead time. The splendid features of the product include cable - 193mm. The product is available in adhesive configuration. It is a pcb trace antenna. The maximum power of the product is 5 w. It has a return loss of -4db, -3db, -6db, -5db, -4db. The product is designated with the 7a994 code number.
