Frequency Range:
698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.130" (3.30mm)
Applications:
ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi
Gain:
2.6dBi, 4.4dBi, 1.8dBi, 3.4dBi, 2.8dBi
Number of Bands:
5
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM, WiFi
Frequency (Center/Band):
829MHz, 1.955GHz, 2.35GHz, 2.6GHz, 3.55GHz
Termination:
Solder
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
A
Power - Max:
2 W
VSWR:
2.5, 3
Return Loss:
-
ECCN:
EAR99

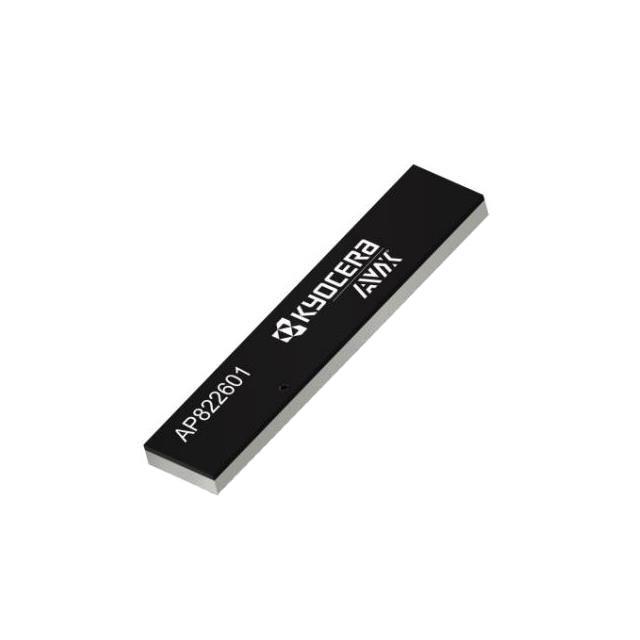

This is manufactured by KYOCERA AVX. The manufacturer part number is AP822601. The frequency range includes 698mhz ~ 960mhz, 1.71ghz ~ 2.2ghz, 2.3ghz ~ 2.4ghz, 2.5ghz ~ 2.7ghz, 3.3ghz ~ 3.8ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.130" (3.30mm) is the maximum height of the product. The product is widely employed in ism, lorawan, lpwa, lte, nb-iot, sigfox, wi-fi. The 2.6dbi, 4.4dbi, 1.8dbi, 3.4dbi, 2.8dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism, wifi. While it has a frequency of 829mhz, 1.955ghz, 2.35ghz, 2.6ghz, 3.55ghz at center/band. The product features solder termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product a, is a highly preferred choice for users. The maximum power of the product is 2 w. VSWR Information: 2.5, 3. The product is designated with the ear99 code number.
