Frequency Range:
600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz
HTSUS:
8517.71.0000
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
0.130" (3.30mm)
Applications:
ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi
Gain:
-3dBi, -3dBi, -1.8dBi, -3dBi, 1.5dBi, 1.2dBi, 2.4dBi, 0.9dBi
Number of Bands:
8
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Cellular, General ISM, WiFi
Frequency (Center/Band):
315MHz, 400MHz, 433MHz, 450MHz
Termination:
Solder
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
A
Power - Max:
2 W
VSWR:
1.5, 2.5, 3, 3.7, 5.5
Return Loss:
-
ECCN:
EAR99

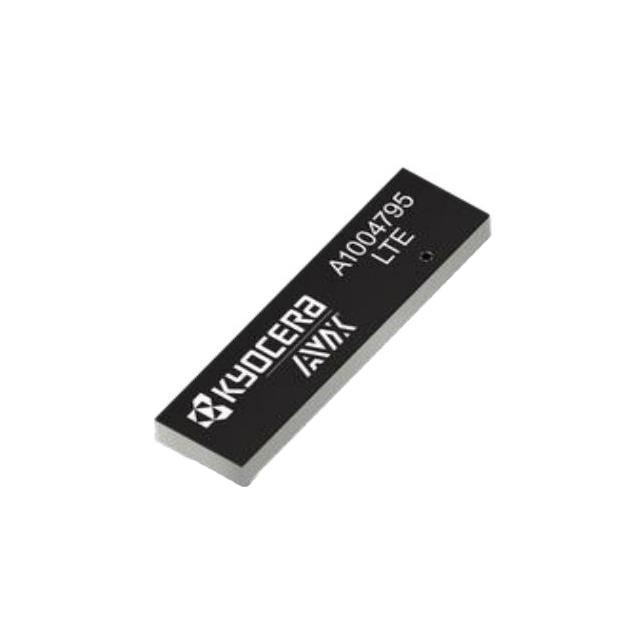

This is manufactured by KYOCERA AVX. The manufacturer part number is A1004795. The frequency range includes 600mhz ~ 698mhz, 698mhz ~ 960mhz, 1.71ghz ~ 2.4ghz, 2.5ghz ~ 2.7ghz. It is assigned with possible HTSUS value of 8517.71.0000. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 0.130" (3.30mm) is the maximum height of the product. The product is widely employed in ism, lorawan, lpwa, lte, nb-iot, sigfox, wi-fi. The -3dbi, -3dbi, -1.8dbi, -3dbi, 1.5dbi, 1.2dbi, 2.4dbi, 0.9dbi is the gain value of a bespoke product. It contains 8 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes cellular, general ism, wifi. While it has a frequency of 315mhz, 400mhz, 433mhz, 450mhz at center/band. The product features solder termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product a, is a highly preferred choice for users. The maximum power of the product is 2 w. VSWR Information: 1.5, 2.5, 3, 3.7, 5.5. The product is designated with the ear99 code number.
