Frequency Range:
868MHz ~ 928MHz, 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Height (Max):
0.130" (3.30mm)
Applications:
Beidou, Galileo, GLONASS, GNSS, GPS
Gain:
1dBi, 0.96dBi, 0.87dBi, 0.96dBi, 1dBi
Number of Bands:
5
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
General ISM, Navigation
Frequency (Center/Band):
898MHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz
Termination:
Solder
standardLeadTime:
9 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Antenna Type:
Chip
Series:
A
VSWR:
1.5, 2.5
Return Loss:
-
ECCN:
7A994

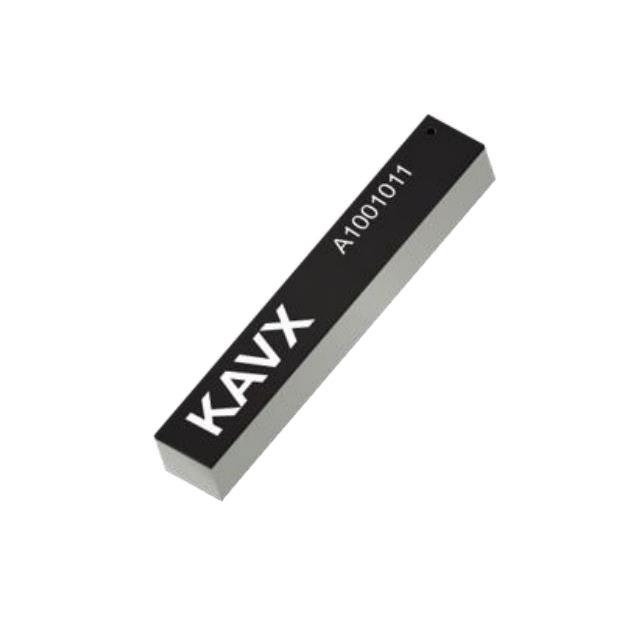

This is manufactured by KYOCERA AVX. The manufacturer part number is A1001011. The frequency range includes 868mhz ~ 928mhz, 1.559ghz ~ 1.563ghz, 1.559ghz ~ 1.591ghz, 1.593ghz ~ 1.61ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (300mhz ~ 1ghz), uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.130" (3.30mm) is the maximum height of the product. The product is widely employed in beidou, galileo, glonass, gnss, gps. The 1dbi, 0.96dbi, 0.87dbi, 0.96dbi, 1dbi is the gain value of a bespoke product. It contains 5 bands. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes general ism, navigation. While it has a frequency of 898mhz, 1.561ghz, 1.575ghz, 1.575ghz, 1.603ghz at center/band. The product features solder termination style. It has a long 9 weeks standard lead time. The product is available in surface mount configuration. It is a chip antenna. The product a, is a highly preferred choice for users. VSWR Information: 1.5, 2.5. The product is designated with the 7a994 code number.
